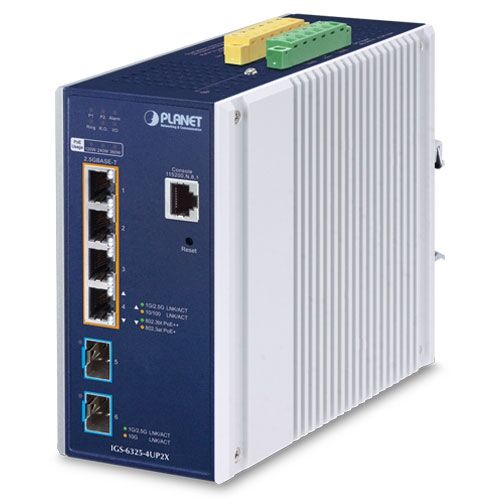

IGS-6325-4UP2X Industrial L3 4-Port 2.5GBASE-T 802.3bt PoE + 2-Port 10G SFP+ Managed Ethernet Switch

£499.00

Key Features

  • 4* 10/100/1G/2.5GBASE-T RJ45 copper ports with 802.3bt PoE++ Injector function
  • 2* 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5GBASE-X SFP
  • One RJ45-to-RS232 console interface for basic management and setup
  • Modbus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
  • Layer 3 IP routing features
  • Quality of service
  • DIN-rail and wall-mountable design
  • IP30 aluminum case
  • Supports ESD 6KV DC Ethernet protection
  • -40 to 75 degrees C operating temperature
CE FCC RoHS WEEE

Description

The PLANET IGS-6325-4UP2X Industrial-grade, Multi-Gigabit L3 Managed PoE++ Ethernet Switch  features four 2.5GBASE-T 802.3bt PoE++ ports, each of which can power up to 95 watts and two 10GBASE-X SFP+ ports. This switch comes in a rugged IP30 metal case and can withstand a temperature range of -40 to 75 degrees C, making operation in the heavy industrial environment more stable.

The IGS-6325-4UP2X supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

The IGS-6325-4UP2X switch offers ONVIF support as part of its versatile feature set for seamless integration with IP surveillance cameras. Through the switch’s web GUI, users can easily search for and display all ONVIF-compliant devices on their LAN.

Users can also upload floor plans to the switch and place IP surveillance cameras on the plan for more intuitive planning and faster inspection in the future. Additionally, the web GUI provides real-time surveillance information, online/offline status, and the ability to remotely reboot cameras.

The IGS-6325 Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.

The IGS-6325 Series is ideal for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.
