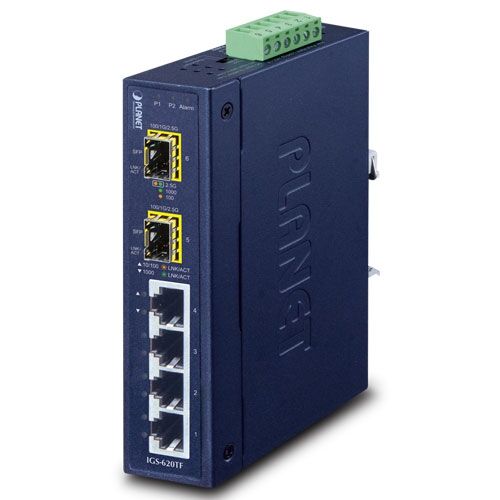

IGS-620TF Industrial 4-Port 10/100/1000BASE-T & 2-Port 100/1G/2.5GBASE-X SFP Ethernet Switch

£235.00

Key Features

  • 4*10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X function
  • 2*SFP interfaces with 100/1000/2500BASE-X transceiver type auto detection
  • Automatically detects link status & redundancy on dual ports with the same connector type
  • Supports auto-negotiation & 10/100Mbps half / full duplex & 1000Mbps full duplex mode
  • Slim IP30 metal case protection
  • DIN-rail, wall-mount or side wall-mount design for redundant power design
    • 12 to 48V DC, redundant power with reverse polarity protection
    • AC 24V power adapter acceptable
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
CE UKCA FCC RoHS WEEE

Description

The PLANET IGS-620TF is an Industrial 6-port full Gigabit Ethernet Switch providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It provides 4-port 10/100/1000BASE-T RJ45 copper and 2 extra 100/1000/2500BASE-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system.

The IGS-620TF is well suited for applications like deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.

The two SFP ports are compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP (small form factor pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 300 meters (Multi-mode fiber cable) to 10/20/30/40/50/70/120 kilometers (Single-mode fiber cable). The Fast Ethernet distance can also be extended from 2km (Multi-mode fiber cable) to 20/40/60 kilometers (Single-mode fiber cable). They are well suited for applications within the factory data centers and distributions.

The IGS-620TF is equipped with the slim-type IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGS-620TF provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-620TF can be placed in almost any difficult environment.  The IGS-620TF also allows either DIN-rail or wall mounting for efficient use of cabinet space.

To enhance the operating reliability and flexibility, the IGS-620TF is equipped with two DC power input connectors for redundant power supply installation. It also possesses an integrated power supply source with wide-ranging voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs.
