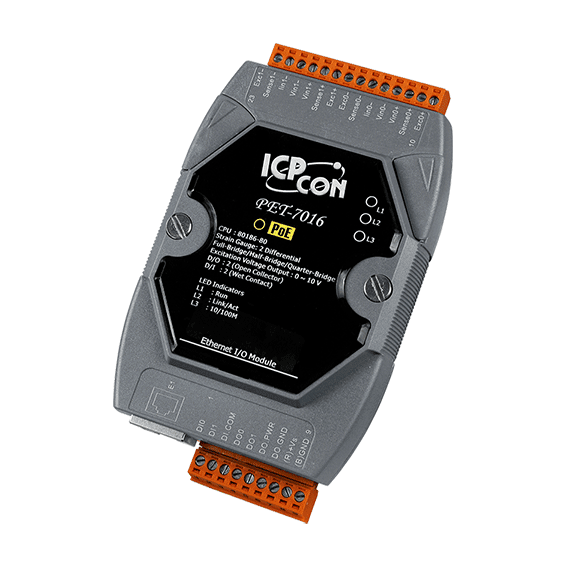

PET-7016 2-channel strain gauge, 2-channel digital input & 2-channel digital Output PoE module

£288.03

Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
    • Strain Gauge Input: 2 Channels
    • DI/Counter: 2 Channels
    • DO: 2 Channels

Description

The ICP DAS PET-7016 is a strain gauge module with 2 analog input channels, 1 excitation voltage output channel, 2 digital input channels and 2 digital output channels module. It provides various programmable analog input inputs (+/-1 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, and +/-2.5 V) and supports full-bridge, half-bridge, and quarter-bridge.

The range for each analog input is allowed to be configured individually, excitation voltage output can be in the range of 0 ~ 10 V with a 60 mA driving efficiency. Digital outputs can also be set as alarm outputs. The ICP DAS PET-7016 can also provide long-distance strain gauge measurement that compensates for the loss of voltage resulting from long-distance measurements.
