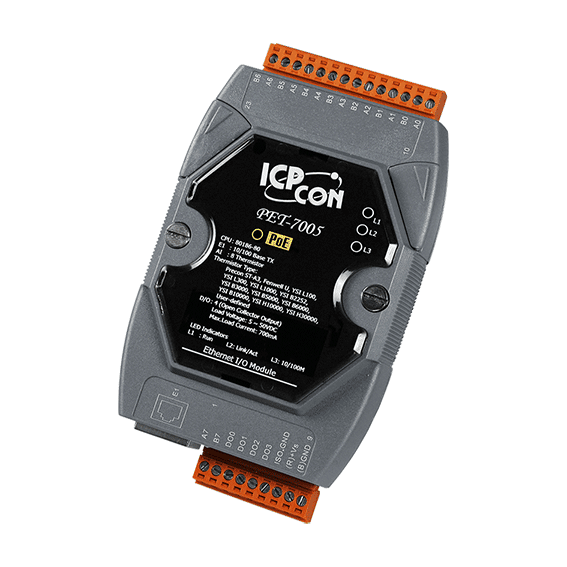

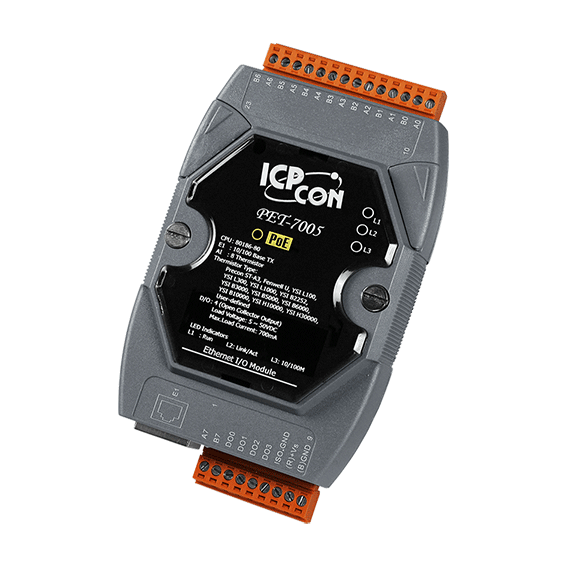

PET-7005 8-channel Thermistor Input & 4-channel Isolated Output Module PoE Module


Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • PoE function
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
    • Thermistor Input: 8 Channels
    • DO: 4 Channels


The ICP DAS PET-7005  remote Ethernet I/O measures temperature via resistance thermometers. The PET-7005 supports a vast array of thermistors and features individual channel configuration which means that eight of its input channels can be individually configured with different types of thermistors. This unit also supports user-defined types by specifying the Steinhart coefficients to add other thermistors, when needed.

The PET-7005 also has 4-channel digital outputs for alarm output with Short-circuit protection and overload protection.  The ICP DAS PET-7005 is equipped with Power over Ethernet (PoE) function and supports Modbus TCP protocol for seamless integration with SCADA software. Equipped with 2500 VDC intra-module isolation and 110 VDC/VAC over-voltage protection for thermistors makes the PET-7005 Ethernet IO module very reliable for resistance thermometer applications.
