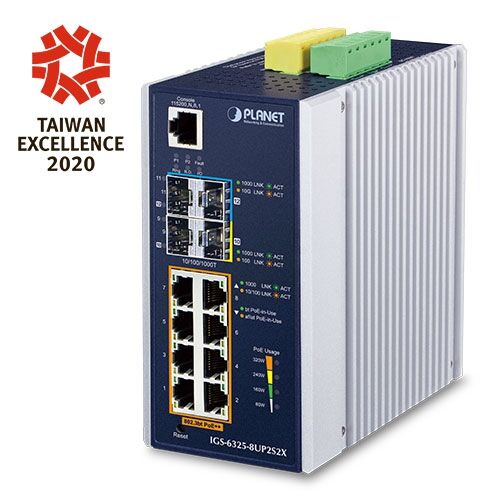

IGS-6325-8UP2S Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP + Managed Ethernet Switch

£559.00

Key Features

  • 8* 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with 802.3bt PoE++ Injector function
  • 2* 100/1000/2500BASE-X SFP slots for SFP type auto detection
  • 2* 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-X SFP and 2500BASE-X SFP
  • One RJ45-to-RS232 console interface for basic management and setup
  • Modbus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
  • Layer 3 IP routing features
  • Quality of service
  • 2*Digital input & 2* digital output channels
  • DIN-rail and wall-mountable design
  • IP30 aluminum case
  • Supports ESD 6KV DC Ethernet protection
  • -40 to 75 degrees C operating temperature
CE FCC RoHS WEEE

Description

Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, the PLANET IGS-6325-8UP2S L3 Industrial Managed PoE++ Switch features eight 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts, two 10G SFP+ ports and two 100/1000/2500BASE-X SFP interfaces in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports, 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-6325 PoE++ Switch series can be placed in almost any difficult environment. The IGS-6325 PoE++ Switch series also allows either DIN rail or wall mounting for efficient use of cabinet space.

The IGS-6325 Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.

The IGS-6325 Series is ideal for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.
