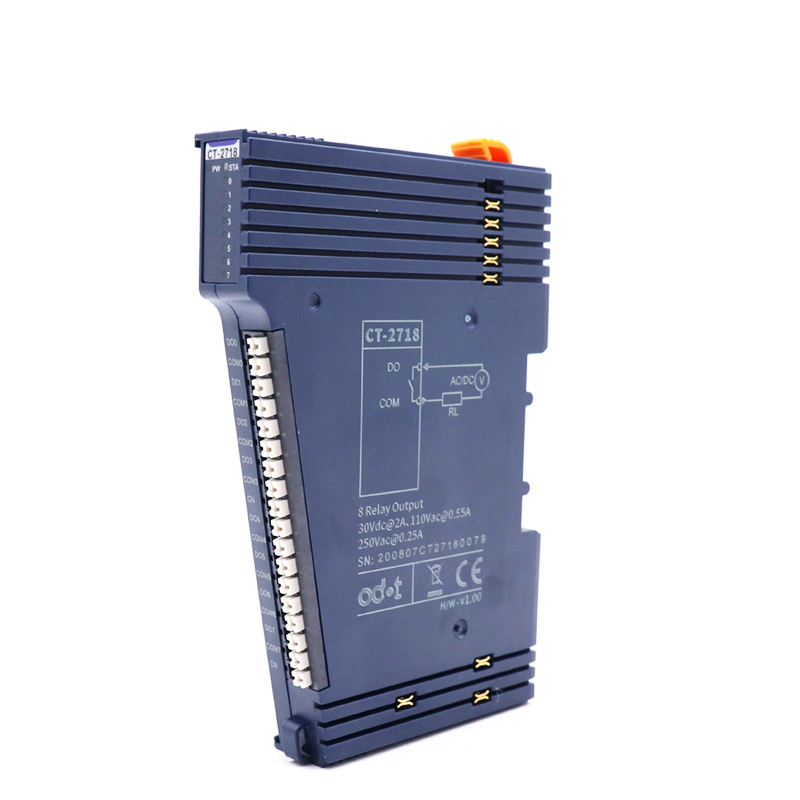

ODOT CT-2718 8 channel relay output 2A/30VDC/60W


Key Features

• Channel Number:8 channel relay output
• LED Indicator:8 channel output LED Indicator
• Max. Switching Current: 2A
• Max. Switching Voltage: 250VAC/220VDC
• Max. Switching Power: 62.5VA/60W
• Contact Resistance: ≤100mΩ
• Operational Temperature: -40~85℃


The ODOT CT-2718 is a 8 channel relay output module that can be integrated with the ODOT Network Adapters to measure 2A/30VDC/60W relay output signals.

The ODOT CT-2718 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
