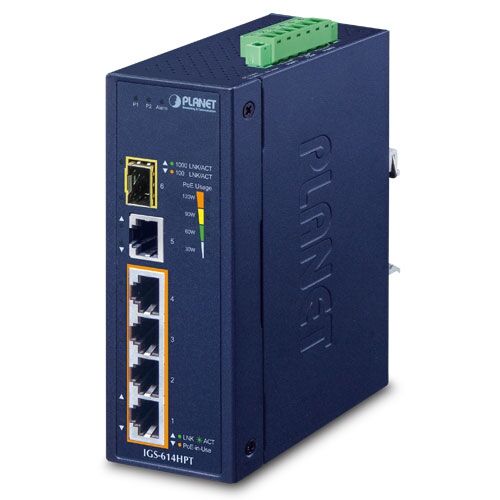

IGS-614HPT Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch

£269.00

Key Features

  • 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
  • One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 4 ports of IEEE 802.3af/at devices powered
  • Up to 120-watt PoE budget
  • DIN-rail and wall-mount designs
  • 12 to 54V DC, redundant power with reverse polarity protection
  • -40 to 75 degrees C operating temperature
CE UKCA FCC RoHS WEEE

Description

With Plug and Play design,  PLANET IGS-614HPT Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch, featuring four IEEE 802.3at PoE+ 10/100/1000BASE-T ports, and one extra 10/100/1000BASE-T RJ45 copper port and one 100/1000BASE-X fibre optic interface for uplink connection, allows to automatically detect and configure internal and external peripherals.

The IGS-614HPT is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP40 metal housing.

To facilitate the 802.3at PoE+ usage with commonly used 12~54V DC power input for transportation and industrial-level applications, the IGS-614HPT adopts 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. The IGS-614HPT provides an integrated power solution with a wide range of voltages (12~54V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 12~54V DC power supply inputs for high availability applications

The additional mini-GBIC slot built in the IGS-614HPT supports SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fibre-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometres (multi-mode fibre) and to 10/20/40/60/80/120 kilometres (single-mode fibre or WDM fibre).  They are well suited for applications to uplink to backbone switch and monitoring centre in long distance.
