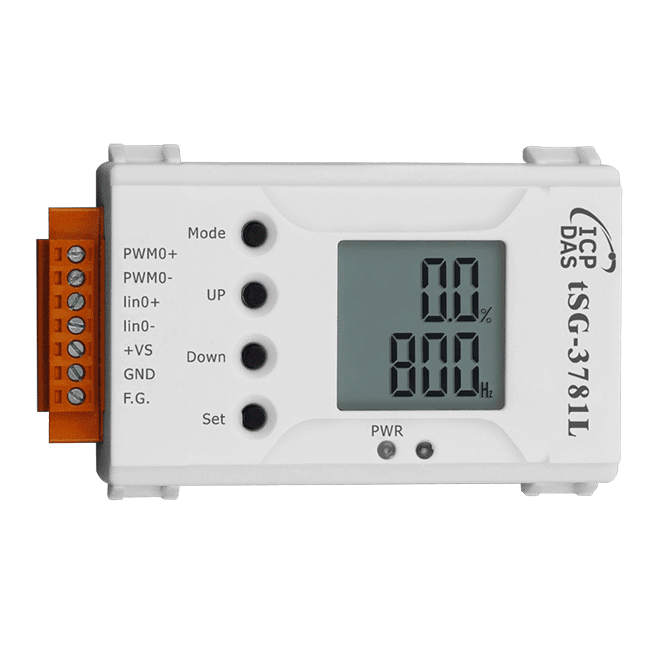

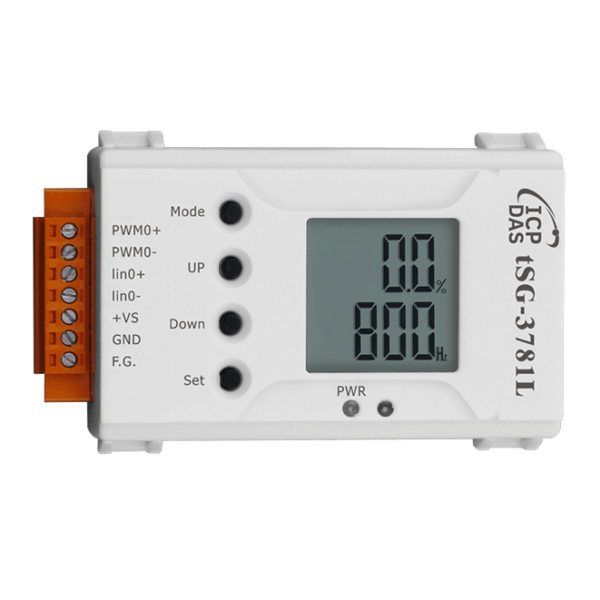

tSG-3781L 1-channel 4 ~ 20 mA Current Input / PWM Output Signal Conditioner (setting buttons are located at the left side)

£139.75

Key Features

  • Convert 1-channel 4 ~ 20mA Current Input to 1-channel PWM Output
  • PWM output duty ratio converted by 4 ~ 20 mA Input
  • PWM output frequency configured via push buttons
  • LCD displays the PWM output duty ratio and frequency
  • 4kV ESD and EFT Protection
CE UKCA FCC RoHS WEEE

Description

The ICP DAS tSG-3781L is a single-channel DC current input signal conditioning module that converts 4~20mA current input to PWM output. The PWM output has a duty cycle of 0%~100% and performs a linear conversion of the 4~20mA current input. The PWM output frequency is adjustable from 600Hz to 800Hz via push buttons.

The tSG-3781L includes a monochrome LCD display that shows the duty cycle and frequency of the PWM output signal. The 4 kV ESD and 4 kV EFT protection are also provided to enhance noise protection capabilities in industrial environments.

Applications

  • Heating system in buildings
  • Ventilation system
  • Controlling servo-assisted diaphragm valve
