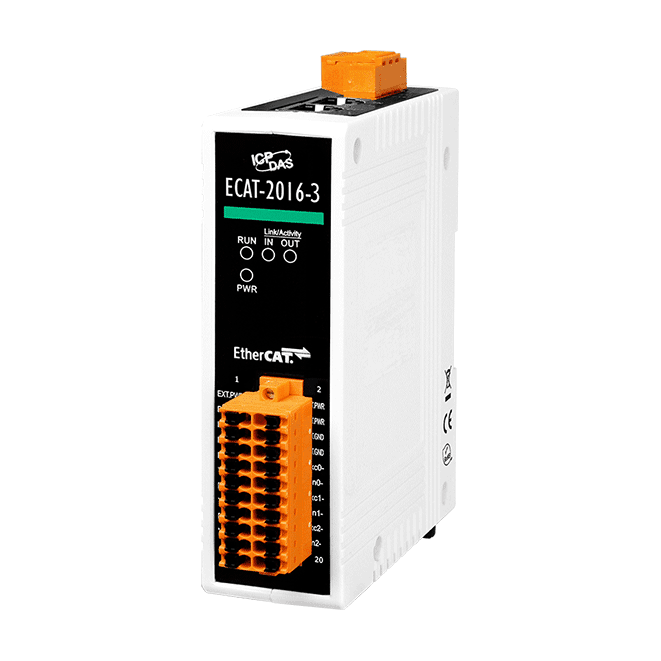

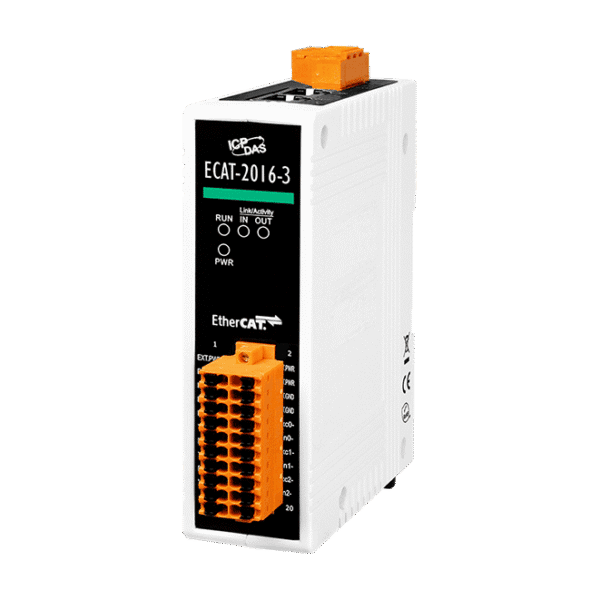

ECAT-2016-3 EtherCAT Slave I/O Module with 16-bit, 3-ch Strain Gauge


Key Features

  • On the fly processing: EtherCAT
  • 2 x RJ-45 bus interface
  • Distance between Stations up to 100 m (100BASE-TX)
  • Support daisy chain connection
  • Built-In 16-bit 3 channel strain gauge inputs
  • ESD Protection 4 KV Contact for each channel
  • EtherCAT conformance test tool verified
  • Removable terminal block connector
  • LED indicators for the output status


The ICP DAS ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment.

The ICP DAS ECAT-2016-3 is a 3-channel analog input module that permits direct connection of a resistor bridge. Users can obtain the input status via the process data. The ECAT-2016-3 has passed and been verified by the conformance test tool to ensure eligible EtherCAT Master or configuration can be easily manipulated and implemented with various industrial applications.
