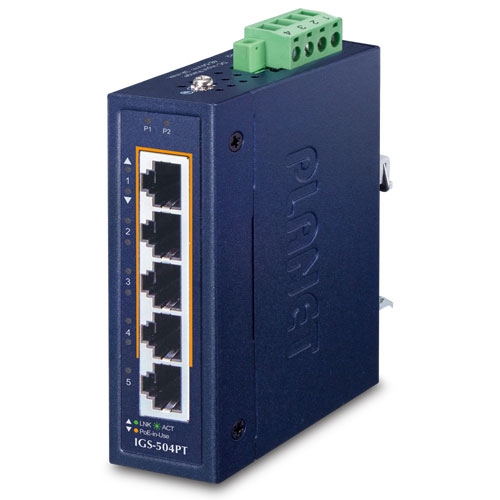

IGS-504PT Compact Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch

£229.00

Key Features

  • 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 4 ports of IEEE 802.3af/at devices powered
  • Up to 120-watt PoE budget
  • Supports PoE power up to 36 watts for each PoE port
  • DIN-rail and wall-mount designs
  • 48 to 54V DC, redundant power with reverse polarity protection
  • -40 to 75 degrees C operating temperature
CE UKCA FCC RoHS WEEE

Description

The IGS-504PT is the smallest industrial-grade 4-Port PoE+ Switch in PLANET industrial PoE product line and is specially designed to be installed in a narrow environment. It provides up to 120-watt 802.3at PoE+ output capability and wire-speed Gigabit performance even in the harsh industrial environment. With four 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and one extra 10/100/1000BASE-T RJ45 copper interface for uplink connection.

The power system of the IGS-504PT supports 48~54V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

Complying with the IEEE 802.3at Power over Ethernet Plus technology, the IGS-504PT provides up to 30 watts of PoE output power to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. Furthermore, the IGS-504PT can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD devices which can be installed over more than 100 meters away. By daisy-chaining multiple PoE extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.
