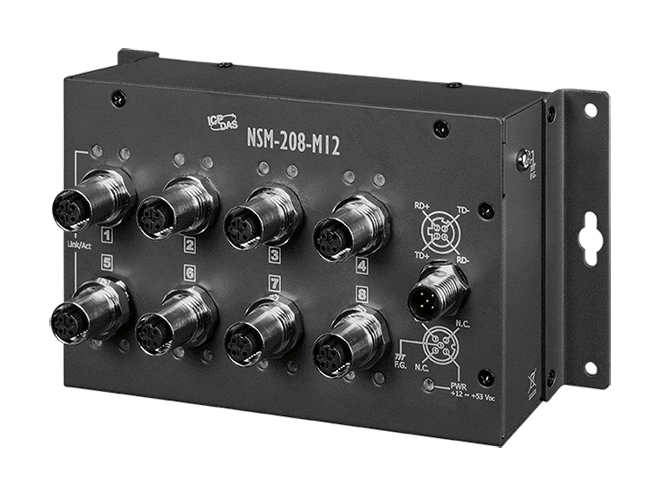

NSM-208-M12 EN50155 8-port M12 Unmanaged Ethernet Switch


Key Features

• Each port supports both 10/100 Mbps speed auto negotiation
• 8-port 10/100 Mbps M12 type connector with IP40 protection
• EN50155/50121-3-2/50121-4, and NEMA TS2 compliant
• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Supports operating temperatures from -40 °C ~ +75 °C


The ICP DAS NSM-208-M12 is designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

The ICP DAS  NSM-208-M12 provides a wide 12 to 53 VDC power range to fit all the common power standards found in industrial automation, without external power converters; the wide power input reduces installation and maintenance costs.
