EH3305 5-Port Unmanaged 10/100 Switch, Slim, Metal

Name: EH3305 5-Port Unmanaged 10/100 Switch, Slim, Metal
Brand: simple
Availability: InStock

£78.75

Add to quote

Key Features

5 x 10/100 BaseT(X) RJ45 port
Broadcast storm protection
Support IEEE802.3/802.3u/802.3x
Support 802.1q/p for VLAN tagging and class of service
Auto MDI/MDI-X
Redundant DC power inputs
Operation temperature from -40 to 70°C
DIN-Rail mounting

Description
Datasheets

Description

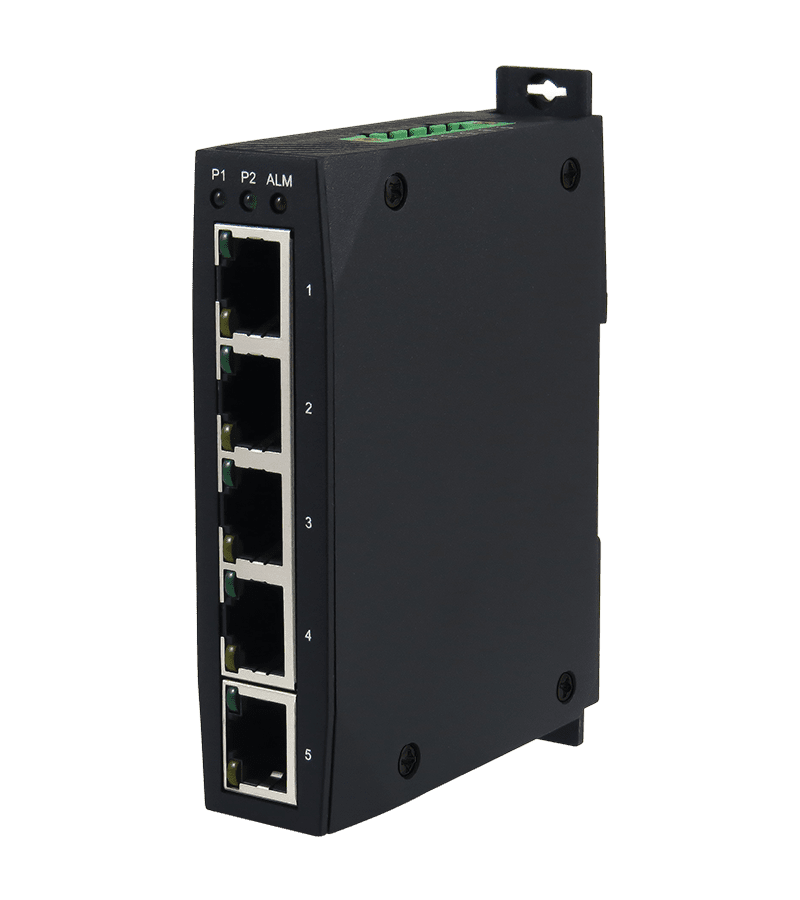

The ATOP EH3305 is a 5 port industrial unmanaged Ethernet switch that is designed to work in industrial environment such as in hazardous locations that comply with CE, FCC and UL standards. The slim design and DIN-Rail mountable features are useful for applications with limited cabinet space. The EH3305 is equipped with two redundant power inputs that can be connected simultaneously to wide-range DC power sources, if one of the power inputs fail, the other live source can act as a backup to automatically provide power to the EH3305 switch and maintain normal operation.

CA_EH3305-_v0.4
