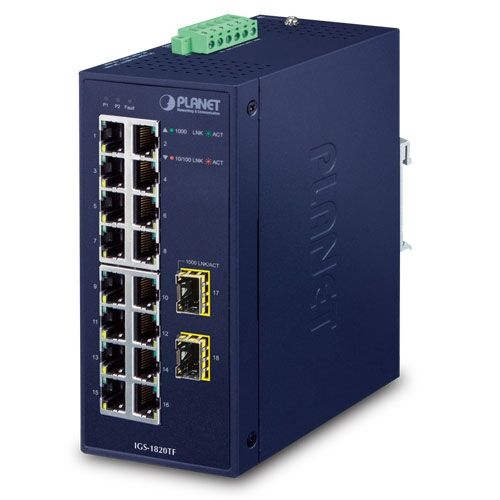

IGS-1820TF Industrial 16-Port 10/100/1000T + 2-Port 1000X SFP Ethernet Switch

Description

The PLANET IGS-1820TF comes with high-density 16 10/100/1000BASE-T ports, 2 1000BASE-X SFP interfaces and redundant power system, it’s designed for heavy industrial demanding environments. Though it includes robust features designed for industrial Ethernet networks, its Plug and Play makes configuration easy. With the IP30-rated rugged but compact-sized case, it can operate stably under the temperature range from -40 to 75 degrees C and can be installed in any difficult environment without space limitation.

The two additional SFP slots built in the IGS-1820TF support 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fibre transceivers to uplink to backbone switch in long distance. The distance can be extended from 550 meters to 2 kilometres (multi-mode fibre) and up to 120 kilometres (single-mode fibre or WDM fibre). They are well suited for applications within the enterprise data centres and distributions.

The IGS-1820TF provides a contact discharge of ±6KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

The IGS-1820TF features a strong dual power input system with wide-ranging voltages (12V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1820TF via power supply 2 alternatively without any loss of operation.
