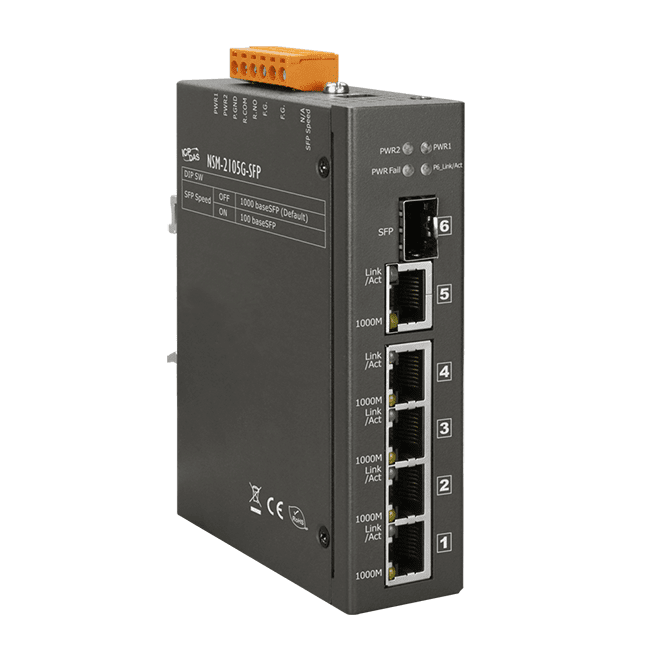

NSM-2105G-SFP Unmanaged 5 Port GbE switch with 1 SFP slot

Name: NSM-2105G-SFP Unmanaged 5 Port GbE switch with 1 SFP slot
Brand: simple
Availability: InStock

£399.00

Key Features

• Automatic MDI/MDI-X crossover for plug-and-play
• 1x 100/1000 SFP socket for Easy and Flexible Fiber Expansion
• Supports operating temperatures from -25 °C ~ +75 °C
• 5 x RJ-45, 10/100/1000BaseT(X), 1 x SFP Slot, 100/1000Base-T(X)
• Power Inputs +12 VDC ~ +48 VDC & 1 Power loss alarm relay output
• IEEE 802.3af compliant PoE ports
• Optional DIN-Rail Mounting

Description
Datasheets

Description

The ICP DAS NSM-2105G-SFP is 5 Port GbE copper with one 100/1000 base SFP Ethernet Switch that support Auto Negotiation, Auto MDI/ MDI-X and Jumbo Frame suitable for use in various industrial applications.

The NSM-2105G-SFP has Redundant Power Function, which can input two sets of 12 to 48VDC power supply at the same time. When one of the power supplies is not operating normally, it will trigger the alarm relay to drive the external sound and light alarm to reduce the time cost of maintenance.

NSM-2105G-SFP_en
