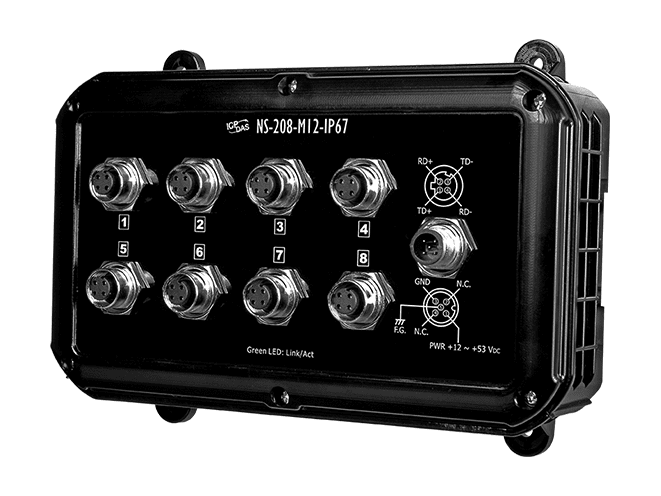

NS-208-M12-IP67 8-port M12 Unmanaged Ethernet Switch with IP67
• 8-port 10/100 Mbps M12 type connector with IP67 protection
• Full duplex IEEE 802.3x and half duplex back-pressure flow control
• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Supports operating temperatures from -40 °C ~ +75 °C
The ICP DAS NS-208-M12-IP67 is designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock. The Ethernet switch supports IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provides an economical solution for your industrial Ethernet network.
The ICP DAS NS-208-M12-IP67 provides a wide +12 VDC ~ +53 VDC power range to fit all the common power standards found in industrial automation, without external power converters, the wide power input reduces installation and maintenance costs.
