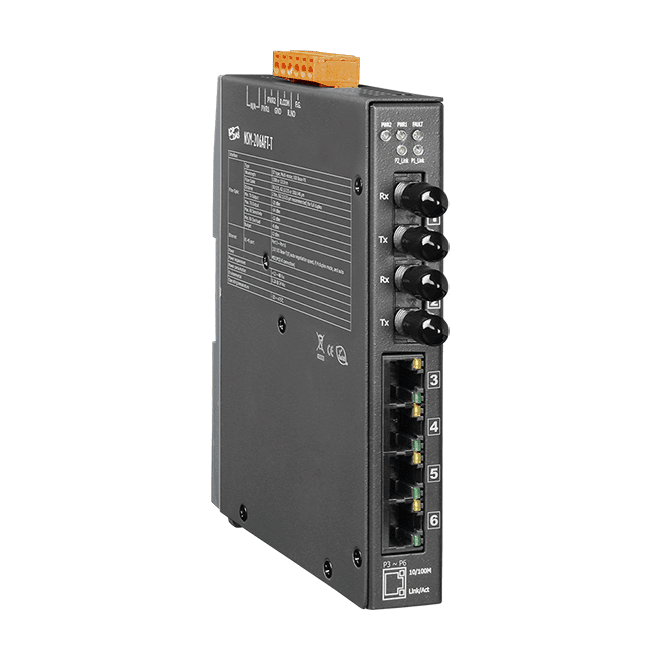

NSM-206AFT-T 4-port 10/100 Mbps Ethernet with 2 fiber port Switch (Multi mode, ST connector) with metal case

£309.00

Key Features

  • Provides 2 x 100-FX fiber ports plus 4 x Ethernet ports
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Full duplex IEEE 802.3x and half duplex back-pressure flow control
  • Automatic MDI/MDI-X crossover for plug-and-play
  • Store-and-forward architecture
  • Redundant dual +12 ~ 48 VDC power inputs
  • Multi-mode, ST Connector Fiber supports
  • Broadcast Storm protection
CE FCC RoHS WEEE UKCA

Description

The ICP DAS NSM-206AFT-T is a 4-port unmanaged Ethernet with 2 fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 2 km) transmissions.

The NSM-206AFT-T provides a wide 12 to 48 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.

NS-205AF_NSM-205AF_NS-206AF_NSM-206AF_en
