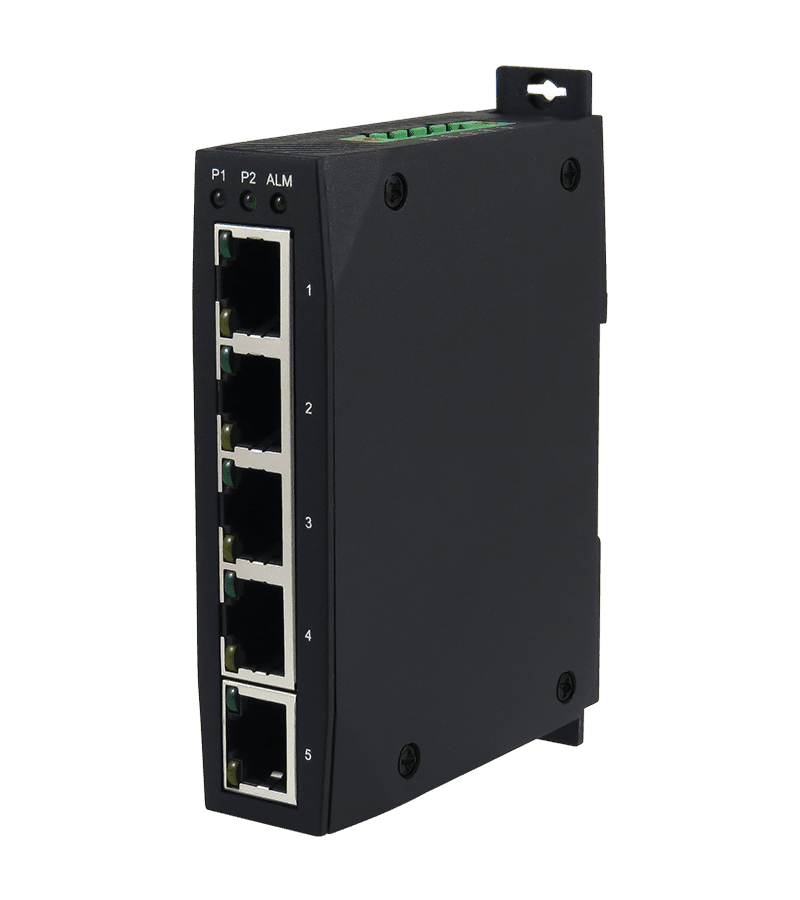

EH3005 5-Port Unmanaged 10/100 Switch, Slim, Plastic


Key Features

  • 5 x 10/100 BaseT(X) RJ45 port
  • Broadcast storm protection
  • Support IEEE802.3/802.3u/802.3x
  • Support 802.1q/p for VLAN tagging and class of service
  • Auto MDI/MDI-X
  • Redundant DC power inputs
  • Operation temperature from 0 °C to 60 °C
  • DIN-Rail mounting


The ATOP EH3005 is a 5 port industrial unmanaged Ethernet switch that is designed to work in industrial environment such as in hazardous locations that comply with CE, FCC and UL standards. The slim design and DIN-Rail mountable features are useful for applications with limited cabinet space. The EH3005 is equipped with two redundant power inputs that can be connected simultaneously to wide-range DC power sources, if one of the power inputs fail, the other live source can act as a backup to automatically provide power to the EH3005 switch and maintain normal operation.
