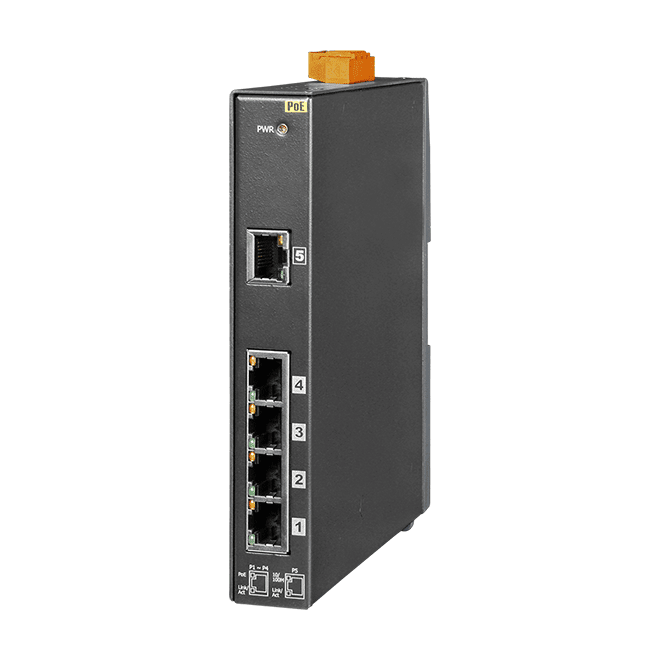

NSM-205PSE-24V 5-port 10/100 Mbps PoE (PSE) Ethernet Switch with +24 VDC Input with metal case


Key Features

• Automatic MDI/MDI-X crossover for plug-and-play
• Full duplex IEEE 802.3x and half duplex back-pressure flow control
• Supports operating temperatures from -40 °C ~ +75 °C
• Each port supports both 10/100 Mbps speed auto negotiation
• Power Inputs +18 VDC ~ +32 VDC
• Store-and-forward architecture
• 3.2 Gbps high performance memory bandwidth
• IEEE 802.3af compliant PoE ports
• DIN-Rail Mounting


The ICP DAS NSM-205PSE-24V is a 5-port unmanaged PoE (Power over Ethernet) Industrial Ethernet switch; it supports 4 PoE ports which are classified as power source equipment (PSE). The ICP DAS NSM-205PSE-24V makes centralized power supply come true and provides up to 15.4 watts of power per PSE port. This Ethernet switch is designed with boost for PoE application where +48 VDC power supply is not available.
