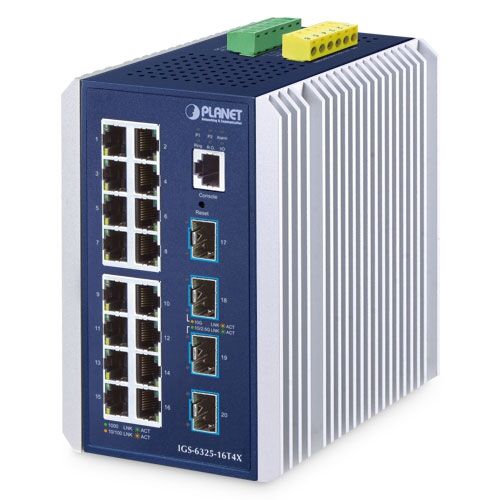

IGS-6325-16T4X Industrial L3 16-Port 10/100/1000BASE-T + 4-Port 10GBASE-X SFP+ Managed Switch

£739.00

Key Features

  • 16* 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  • 4* 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5GBASE-X SFP
  • One RJ45-to-RS232 console interface for basic management and setup
  • Modbus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
  • Layer 3 IP routing features
  • Quality of service
  • 2*Digital input & 2* digital output channels
  • DIN-rail and wall-mountable design
  • IP30 aluminum case
  • Supports ESD 6KV DC Ethernet protection
  • -40 to 75 degrees C operating temperature
CE FCC RoHS WEEE

Description

The PLANET IGS-6325-16T4X is a powerhouse in industrial networking designed to optimize performance. This Layer 3 managed switch boasts a high-density combination of copper and fiber optic interfaces, setting the stage for superior connectivity. With 16 10/100/1000BASE-T RJ45 ports and 4 10GBASE-SR/LR SFP+ ports, it’s equipped to handle diverse demands. Housed in a rugged IP30 metal case with DIN-rail compatibility, it thrives in extreme environments spanning from -40 to 75 degrees Celsius.

Featuring a 10Gbps uplink, the IGS-6325-16T4X seamlessly manages substantial data loads within a secure topology. Whether connecting to an industrial backbone or high-capacity servers, its prowess is unmatched. Operating flawlessly across an extensive temperature range, it guarantees a non-blocking switch fabric, delivering astonishing wire-speed throughput of up to 112Gbps. This transformative capability simplifies the process of industrial LAN upgrades, efficiently catering to escalating bandwidth requirements.

From demanding conditions to intensive data streams, the IGS-6325-16T4X emerges as the ultimate choice for enhancing industrial network performance.

With the supported Modbus TCP/IP protocol, the IGS-6325-16T4X can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

C-IGS-6325 non-PoE series_v1.5_L
