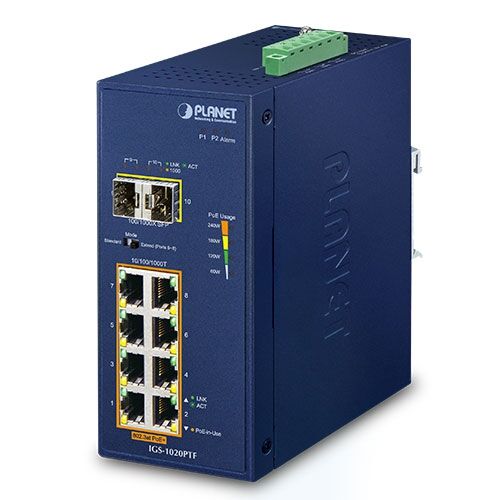

IGS-1020PTF Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch

£259.00

Add to quote

Key Features

  • Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3af/at PoE+ Injector (Ports 1 to 8)
  • Two 100/1000BASE-X SFP slots for SFP transceiver type auto detection (Ports 9 to 10)
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • 240-watt PoE budget
  • Supports PoE power up to 30 watts for each PoE port
  • DIN-rail and wall-mount designs
  • 48 to 54V DC, redundant power with reverse polarity protection
  • -40 to 75 degrees C operating temperature
CE UKCA FCC RoHS WEEE

Description

The PLANET IGS-1020PTF is an Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch with eight 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and two 100/1000BASE-X fibre optic interfaces for uplink connection.

The IGS-1020PTF is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

The IGS-1020PTF features a strong dual power input system with wide-ranging voltage (48~54V DC) incorporated into customer’s automation network to enhance system reliability and uptime.  When power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1020PTF via power supply 2 alternatively without any loss of operation.

The additional two mini-GBIC slots built in the IGS-1020PTF supports SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (small form-factor pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometres (multi-mode fibre) and to 10/20/40/60/80/120 kilometres (single-mode fibre or WDM fibre). They are well suited for applications to uplink to backbone switch and monitoring centre in long distance.

C-IGS-1020PTFv2_L
