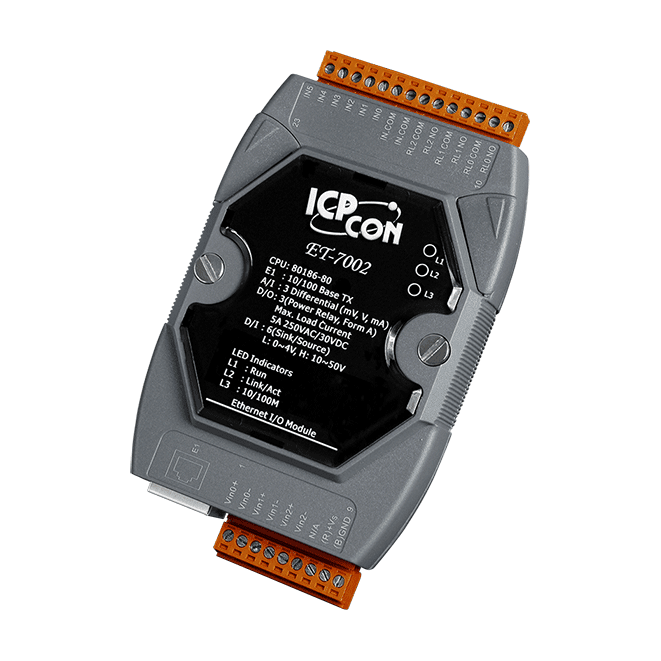

ET-7002 3-channel analog inputs, 6-channel digital inputs & 3-channel Relay outputs module

£259.43

Add to quote

Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
    • AI: 3 Channels
    • DI/Counter: 6 Channels
    • Power Relay: 3 Channels

Description

The ICP DAS ET-7002 is a multi-function module with 3-channel analog inputs, 6-channel digital inputs and 3-channel relay outputs. It provides various programmable analog inputs (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA).

Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper. The ICP DAS ET-7002 is fully RoHS compliant and has qualification for 4 kV ESD protection and 2500 VDC intra-module isolation.

ET-7x02_PET-7×02
