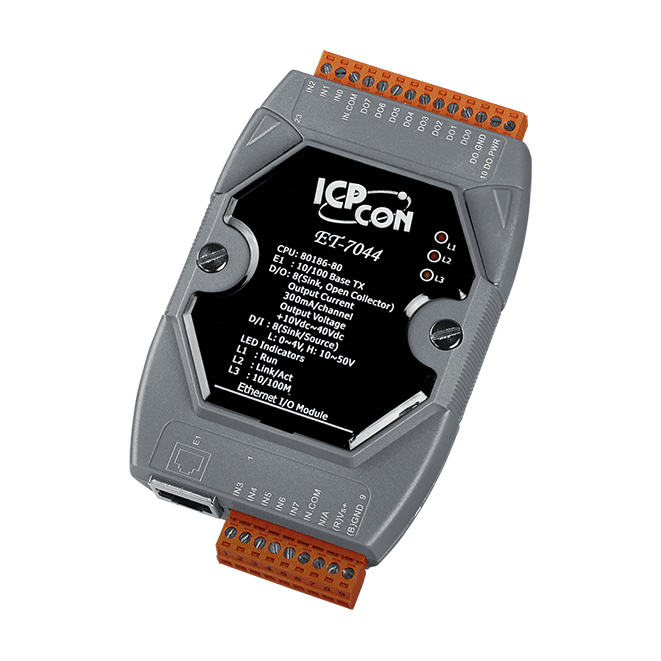

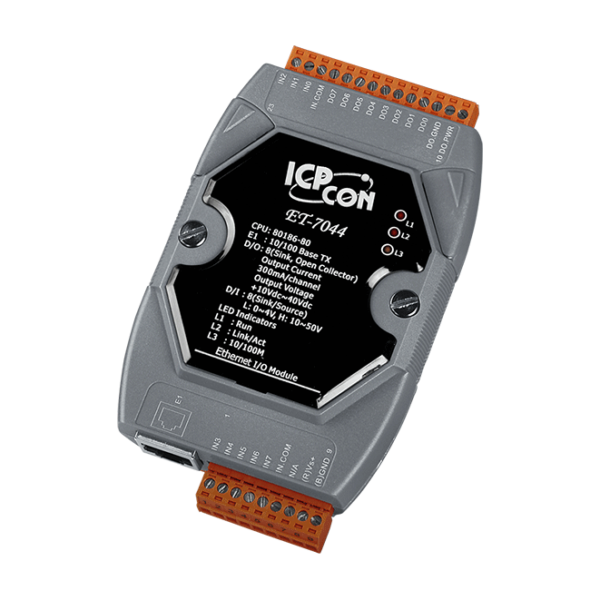

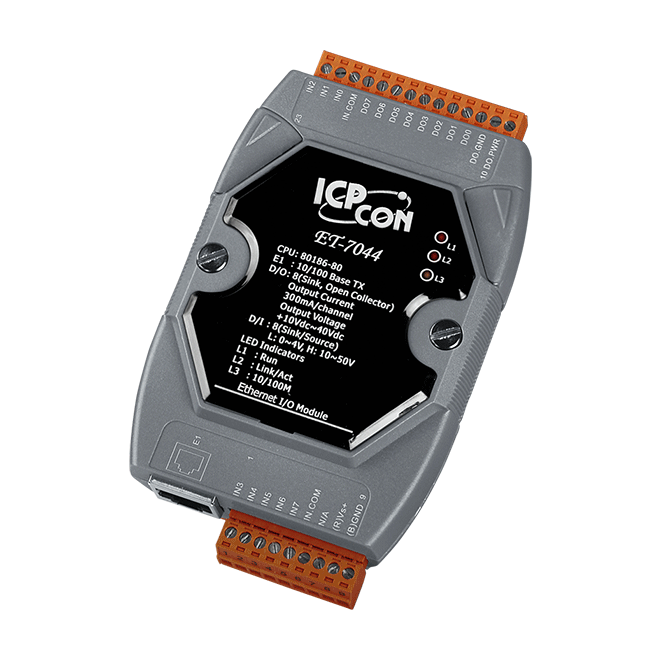

ET-7044 8-channel Isolated Sink Type Open Collector Output & 8-channel Isolated Digital Input Module



  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
    • DI/Counter: 8 Channels
    • DO: 8 Channels


The ICP DAS ET-7044 provides 8 wet contact digital input channels and 8 sink-type digital output channels. It features optical isolation for 3750 Vrms of transient over-voltage protection but doesn’t provide channel-to-channel isolation. Each input channel can be used as a 32-bit counter and each output channel can drive 300 mA load.

The power-on value and safe value of digital output channel are programmable; the ICP DAS ET-7044 can safely be used in applications where hazardous voltages are present.
