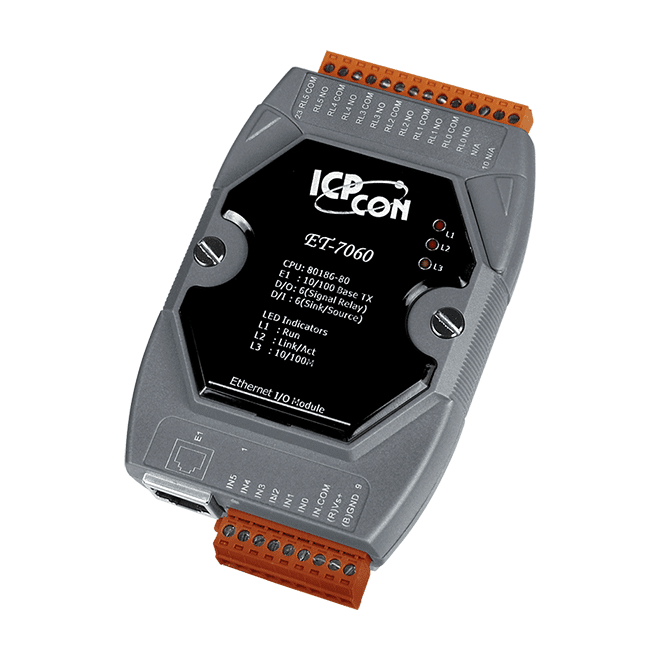

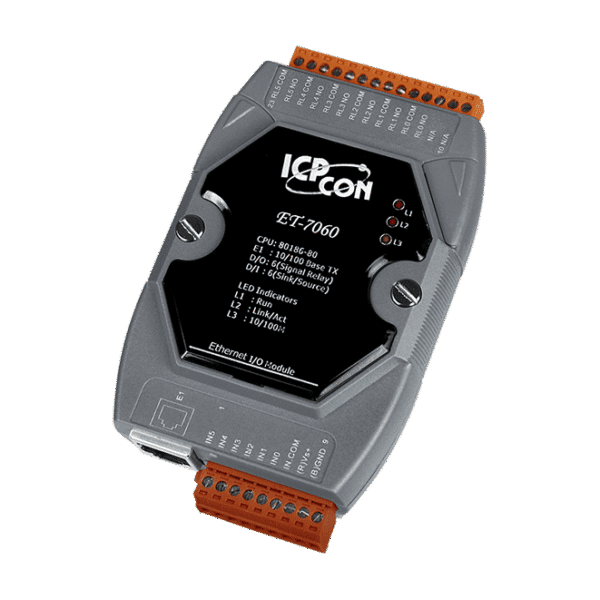

ET-7060 6-channel Power Relay Output & 6-channel Isolation Digital Input

£126.00

Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
    • DI/Counter: 6 Channels
    • Power Relay: 6 Channels

Description

The ICP DAS ET-7060 provides 6 wet contact digital input channels and 6 form A electro-mechanical relays. The ET-7060 features optical isolation for 3000 VDC of transient over-voltage protection and doesn’t have channel-to-channel isolation. Each input channel can be used as a 32-bit counter with the ICP DAS ET-7060 I/O module.

The power-on value and safe value of relay are programmable with the ET-7060 module. Please note, when inductive loads are connected to the relays, a large counter electromotive force may occur when the relay actuates because of the energy stored in the load. These fly-back voltages can severely damage the relay contacts and greatly shorten the relay life. Limit these fly-back voltages at your inductive load by installing a fly-back diode for DC loads or a metal oxide varistor for AC loads.
