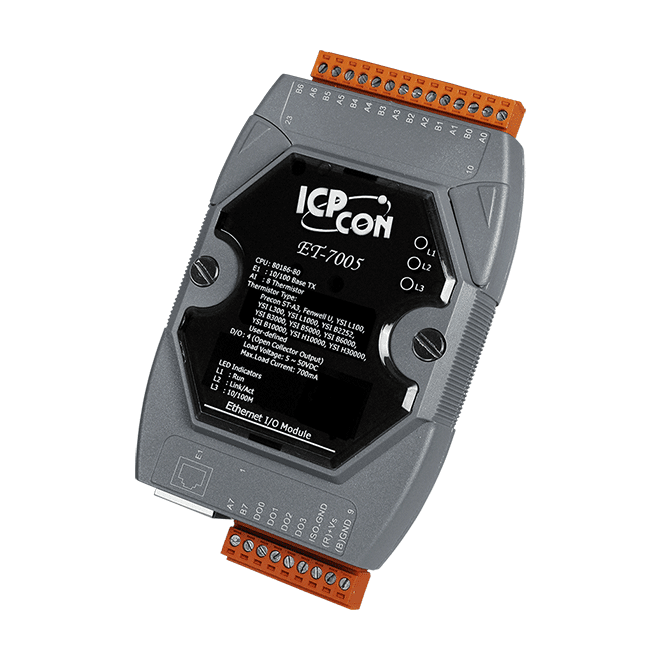

ET-7005 8-channel Thermistor Input & 4-channel Isolated Output Module Module
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
- I/O Pair Connection
- Built-in I/O
- Thermistor Input: 8 Channels
- DO: 4 Channels
The ICP DAS ET-7005 remote Ethernet I/O measures temperature via resistance thermometers. The ET-7005 supports a vast array of thermistors and features individual channel configuration which means that eight of its input channels can be individually configured with different types of thermistors. This unit also supports user-defined types by specifying the Steinhart coefficients to add other thermistors, when needed.
The ICP DAS ET-7005 also has 4-channel digital outputs for alarm output with Short-circuit protection and overload protection. The ICP DAS ET-7005 supports Modbus TCP protocol for seamless integration with SCADA software. Equipped with 2500 VDC intra-module isolation and 110 VDC/VAC over-voltage protection for thermistors makes the ET-7005 very reliable for resistance thermometer applications.
