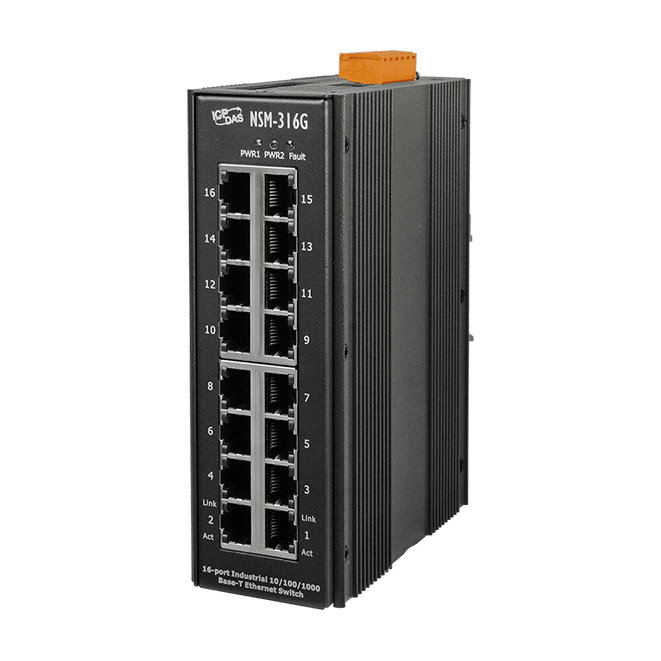

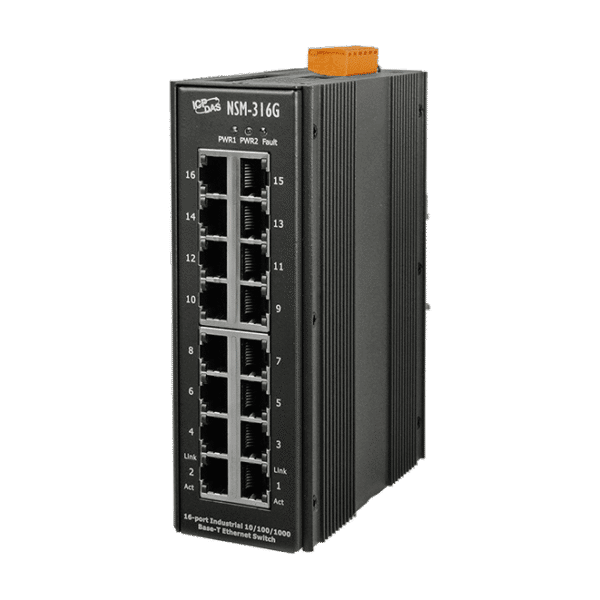

NSM-316G 16-port GBE Ethernet Unmanaged Switch


Key Features

• Full Gigabit Ethernet ports
• Non-blocking architecture, line rate for all packet sizes
• Fully integrated packet buffer
• DIP switch alarm setting for Port’s break
• Power loss alarm
• Supports 9216 Byte jumbo frames
• Supports Auto Negotiation and Auto MDI/MDI-X
• Supports Dual +12 ~ 48 VDC power input and 1 relay output
• Supports operating temperatures from – 40 ~ +75°C
• DIN-Rail Mounting, Wall Mounting (optional)


The ICP DAS NSM-316G is 16-port unmanaged full Gigabit Ethernet switch, Energy Efficient Ethernet™ (EEE) , Port’s loss link Break Alarm, Power loss Alarm with a 10/100/1000 M auto negotiation feature and auto MDI/MDI-X function. It can connect 16 workstations and automatically switches the transmission speed for corresponding connections. All Ethernet ports have memory buffers that support the store-and-forward mechanism, which assures that data can be transmitted properly.

The ICP DAS NSM-316G supports advanced network standards to optimize network performance, reduce maintenance costs, and secure network safety. The flow control mechanism is also negotiated and there is link/data rate LEDs for each port to aid troubleshooting and port connectors are shielded RJ-45.
