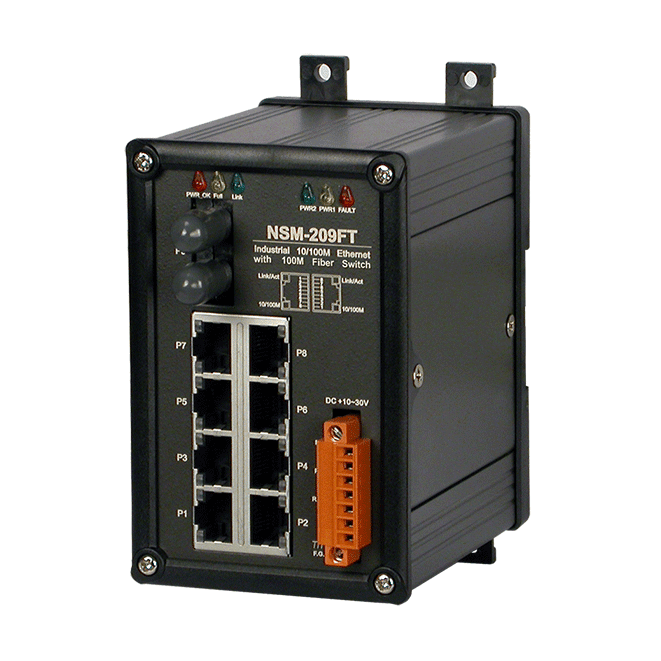

NSM-209FT 8-port 10/100 Mbps Ethernet with 1 fiber port Switch (Multi mode, ST connector) with metal case
• Each port supports both 10/100 Mbps speed auto negotiation
• Full duplex IEEE 802.3x and half duplex back-pressure flow control
• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Supports operating temperatures from -10 ~ +75 °C
• Multi-mode, ST Connector Fiber supports
The ICP DAS NSM-209FT is a 8-port unmanaged Ethernet with 1 fiber port switch. Using fiber optics prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 2 km) transmission. The NSM-209FT provides a wide 10 to 30 VDC power range suitable for common power standards in industrial automation, without external power converters.
