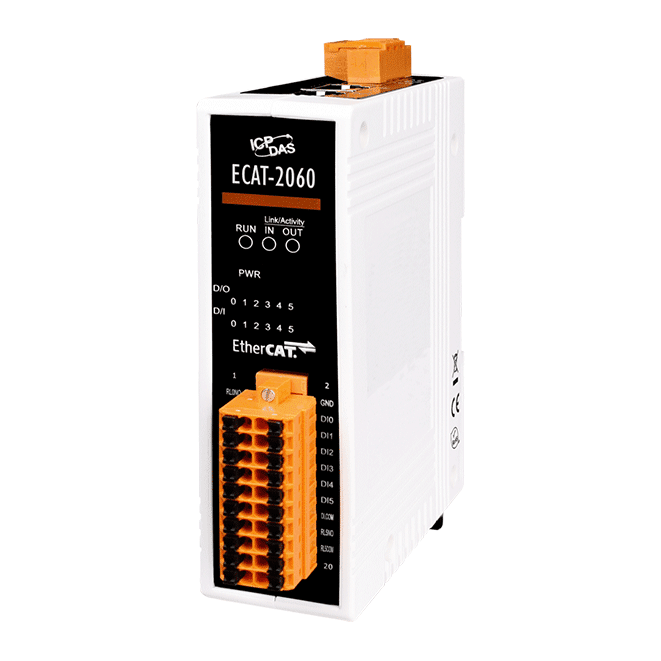

ECAT-2060 EtherCAT Slave I/O Module with Isolated 6-ch DI & 6-ch Relay


Key Features

  • On the fly processing: EtherCAT
  • Built-In digital I/O: 6 DI and 6 Relay DO
  • Powerful MCU handles efficient network traffic
  • 2 x RJ-45 bus interface
  • Distance between Stations up to 100 m (100BASE-TX)
  • Support daisy chain connection
  • EtherCAT conformance test tool verified
  • Removable terminal block connector
  • ESD Protection 4 KV Contact for each channel
  • LED indicators


The ICP DAS ECAT-2060 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring.

The ICP DAS ECAT-2060 is built-in with isolated 6 digital inputs and 6 relay digital outputs. Users can obtain the output status via the process data, when passed and verified by the conformance test tool, the eligible EtherCAT Master or configurator can simply manipulate and implement it.
