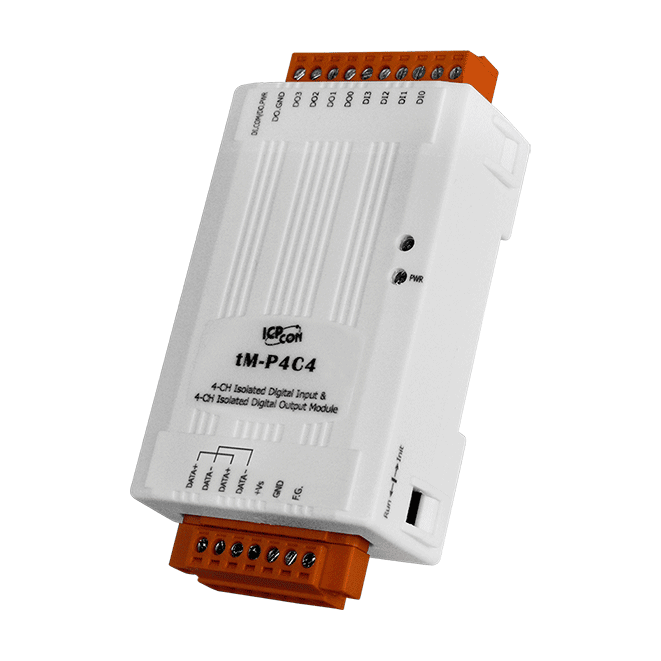

tM-P4C4 4-channel Isolated DI and 4-channel Isolated DO Module

Name: tM-P4C4 4-channel Isolated DI and 4-channel Isolated DO Module
Brand: simple
Availability: InStock

£100.39

Add to quote

Key Features

4-channel Source-type Digital Inputs
4-channel Sink-type Digital Outputs
photocoupler Isolation
All DI Channels Can Be Used As 16-bit Counters
Configurable Power-on Value and Safe Value Settings
Dual Watchdog

Description
Datasheets

Description

The ICP DAS tM-P4C4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocoupler isolation. The tM-P4C4 supports sink-type output with short circuit protection, while the input is source-type.

All input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.

Applications

All Kinds of On/Off Control
Industrial Automation
Industrial Machinery
Building Automation
Food and Beverage Systems
Semiconductor Fabrication
Control Systems

tM-P4C4_en
