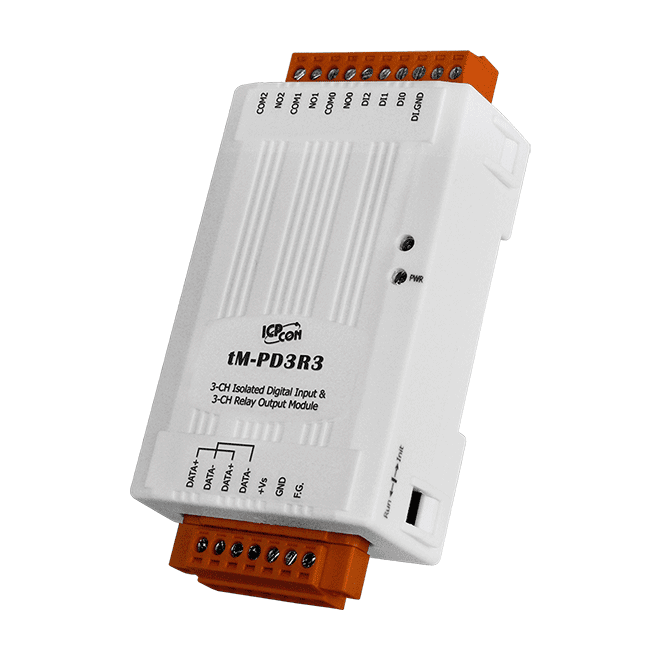

tM-PD3R3 3-channel Isolation Digital Input & 3-channel Power Relay Module


Key Features

• Relay Outputs
• Dry Contact Source-type Digital Inputs
• Photo-coupler Isolation
• All channels can be used as 16-bit counters
• Dual Watchdog
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Cost-effective


The ICP DAS tM-PD3R3 provides 3 channels for digital input (dry contact) and 3 channels for relay output, each of which features photo-coupler isolation. All output channels are form A type relays, while input is based on source-type using a wire connection. All input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values.

The ICP DAS tM-PD3R3 is equipped with 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
