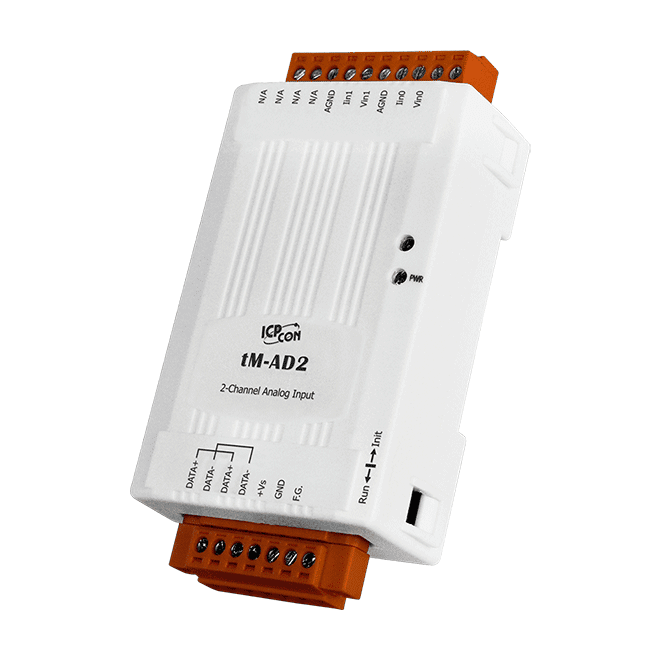

tM-AD2 2-channel Isolated Analog Input Module

Description

The ICP DAS tM-AD2 is an analog input module with 2 single-ended analog input channels and provides a programmable input range on all analog inputs (0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA). It provides a high over-voltage protection of 120 VDC.

The sampling rate of the ICP DAS tM-AD2 is adjustable and available in either fast or normal mode. It also provides 4 KV ESD protection and 2500 VDC intra-module isolation.
