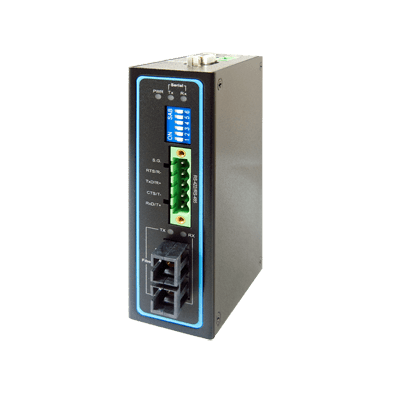

SF63-TB-DB-1Fs-SC-30 Industrial Serial-to-Fiber Media Converter, single- mode, SC connector, 30KM


Key Features

  • Supports Multi-mode 2KM, Single-mode 30KM
  • PTP and Ring mode for serial fiber ring communication
  • Supports RS-485 120 ohm line terminator
  • Supports RS-485 Data signals pull high/low resister
  • Supports input voltage 9 ~ 48VDC
  • Operating temperature ranges from -40~70˚C


The ATOP SF63 Industrial Serial to Fibre Media Converter Series provide industrial conversion between 100BaseFX(SC or ST connector), RS-232, and RS-422/485; connection options include multi-mode SC/ST connector (2km), and single- mode SC/ST connector (30km). The ATOP SF63 Serial to Fibre Media Converter is designed for harsh industrial environments, and complies with FCC/CE standards.
