FSM-510G-4F 6-Port 10/100/1000 Base-T + 4 SFP Port L2 Managed Switch
• L2+ features provide better manageability, security, QoS, and performance
• Network redundant Ring fail-over protection (< 20 ms)
• Multicasting support IGMP v1/v2/v3, proxy & snooping
• Multicast/Broadcast/Flooding Storm Control

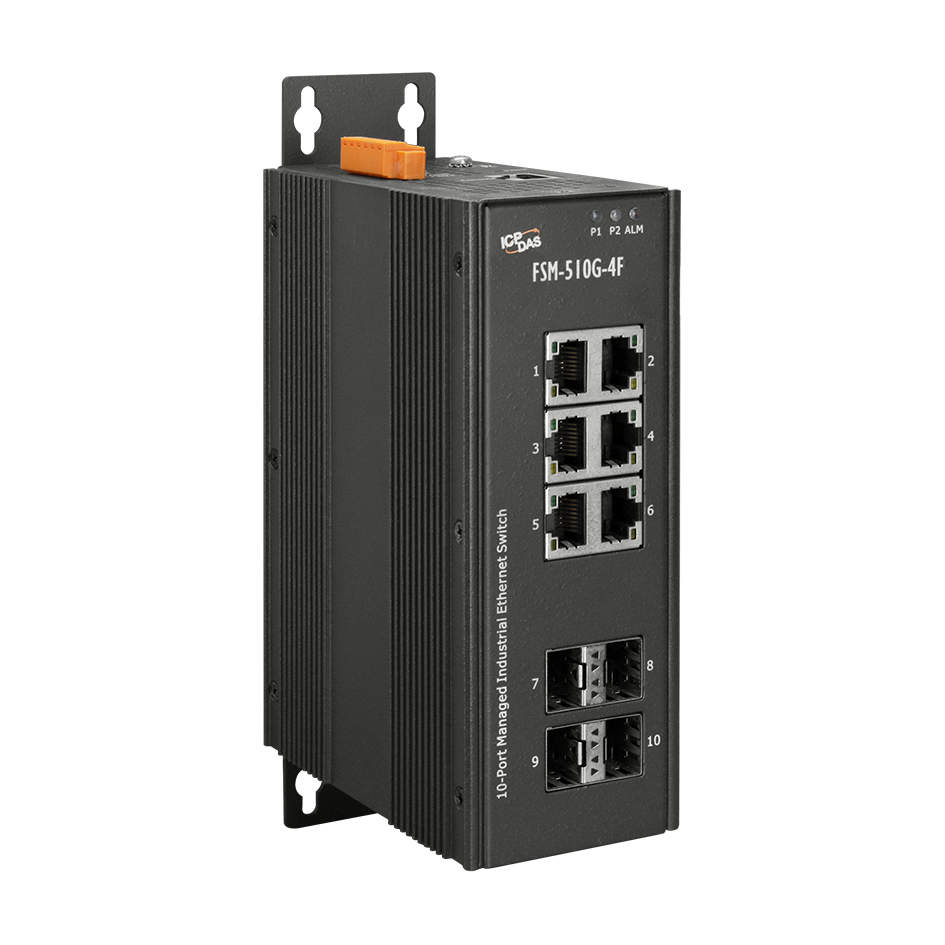

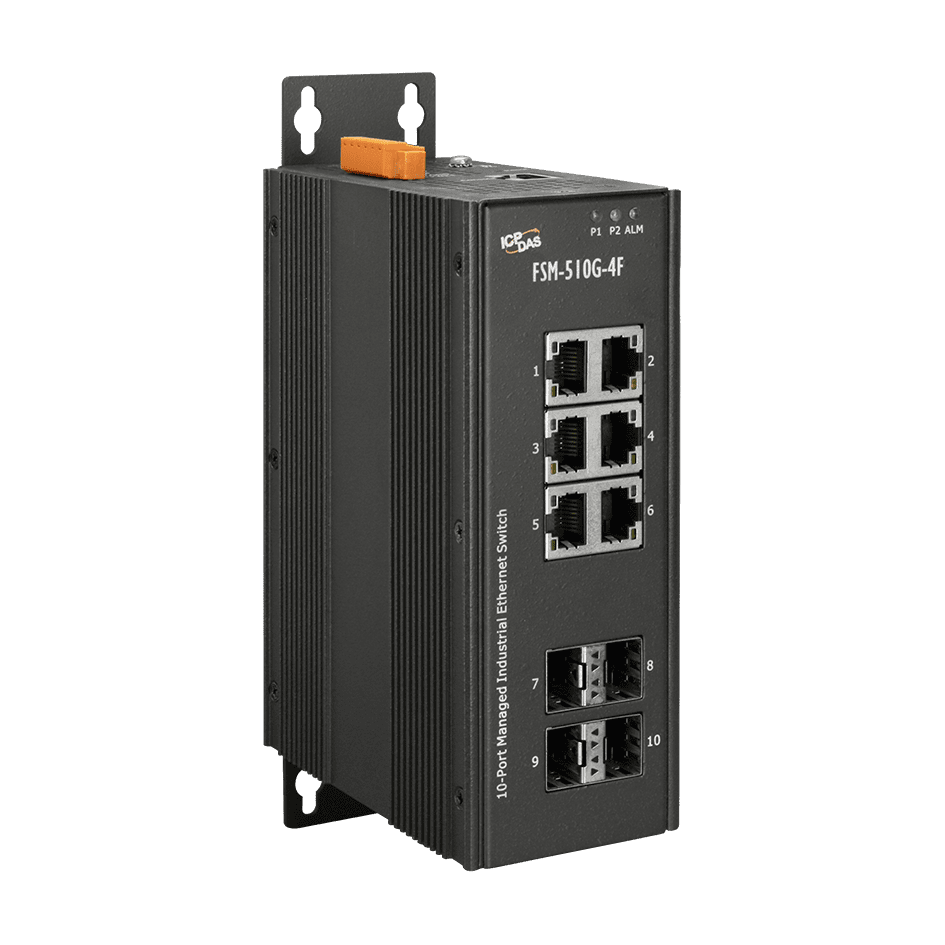

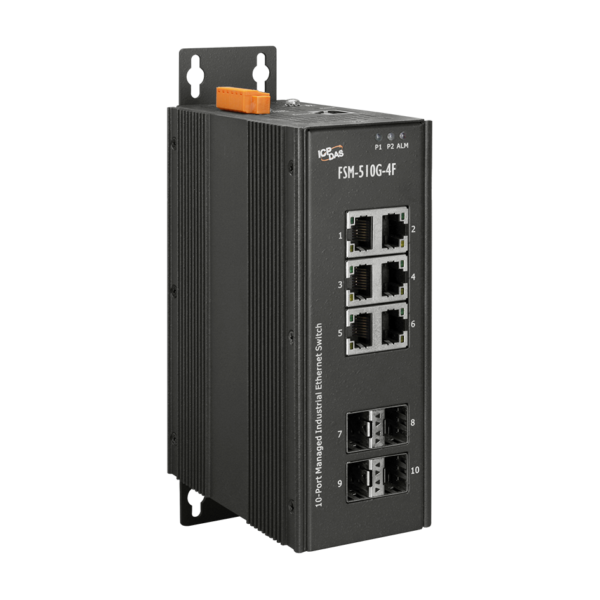

The ICP DAS FSM-510G-4F is a L2 Managed Switch that meets all IEEE 802.3ab/u/x/z Gigabit, Gigabit Ethernet and Ethernet specifications. It provides 6 gigabit Ethernet ports (10/100/1000 Mbps TP) 4 SFP ports.
This switch can be managed through RS-232 serial port via direct connection, or through Ethernet port using Telnet or Web-Based management unit, associated with SNMP agent. With the SNMP agent, the network administrator can logon the switch to monitor, configure and control each port activity in a friendly way. The overall network management is enhanced and the network efficiency is also improved to accommodate high bandwidth applications. In addition, the switch features comprehensive and useful function such as QoS (Quality of Service), Spanning Tree, VLAN, Port Trunking, Bandwidth Control, Port Security, SNMP/RMON.
