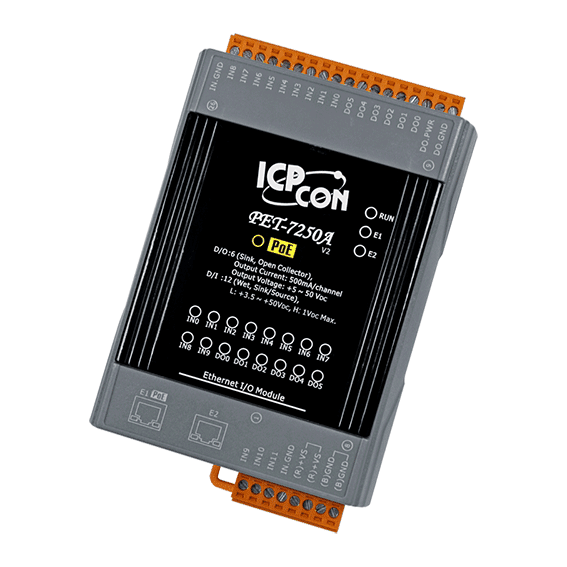

PET-7250A PoE Ethernet I/O Module with 2-port Ethernet Switch, 12-ch DI and 6-ch DO
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP & Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology with Power over Ethernet
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
- Built-in I/O
- DI/Counter: 12 Channels
- DO: 6 Channels
The ICP DAS PET-7000/PET-7200 series provides full networking capabilities, and a variety of I/O functions, together with web based Ethernet I/O monitoring and control modules, meaning that the modules can be remotely controlled using the Modbus TCP/UDP protocol via an Ethernet network.
This ensures that the PET-7000/PET-7200 series provides integration with HMI, SCADA, PLC and other industrial control software systems. The PET-7250A includes two built-in Ethernet switch ports, which help to reduce implementation costs as there is no need to install an additional switch in order to daisy chain the ports or to extend the network via the Ethernet line.
The ICP DAS PET-7250A provides 6 sink-type digital output channels and 12 wet contact digital input channels, each of which is able to be used as a 32-bit counter. In addition, each digital input of PET-7250A accepts either dry contact or wet contact.
