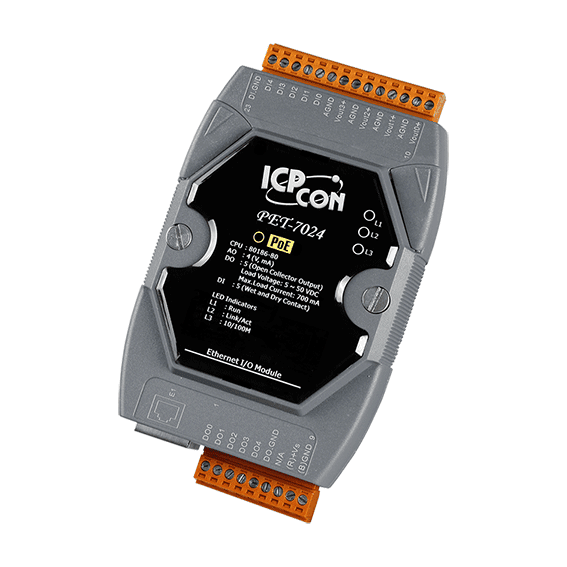

PET-7024 PoE I/O Module with 4-ch AO, 5-ch DI & 5-ch DO


Key Features

  • Built-in Web Server with PoE
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
    • AO: 4 Channels
    • DI/Counter: 5 Channels
    • DO: 5 Channels


The ICP DAS PET-7024 is a multifunction Power-over-Ethernet I/O module with 4 channel analog output, 5 channel digital input and 5 channel digital output. The PET-7024 is equipped with a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending on the position of corresponding jumper. The ICP DAS PET-7024 is fully RoHS compliant and provides 4 kV ESD protection as well as 2500 VDC intra-module isolation.
