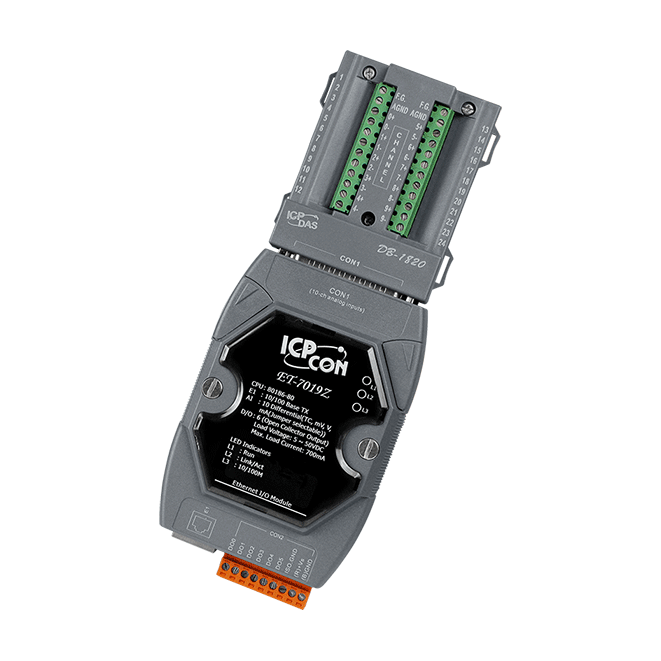

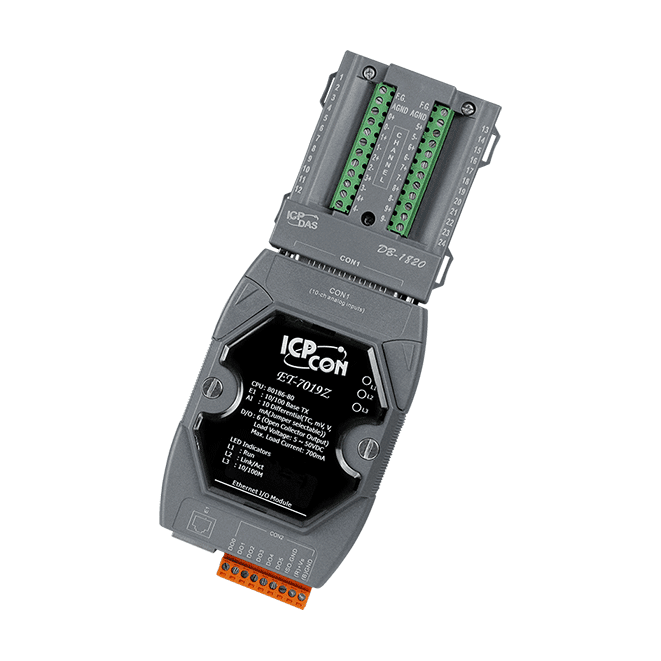

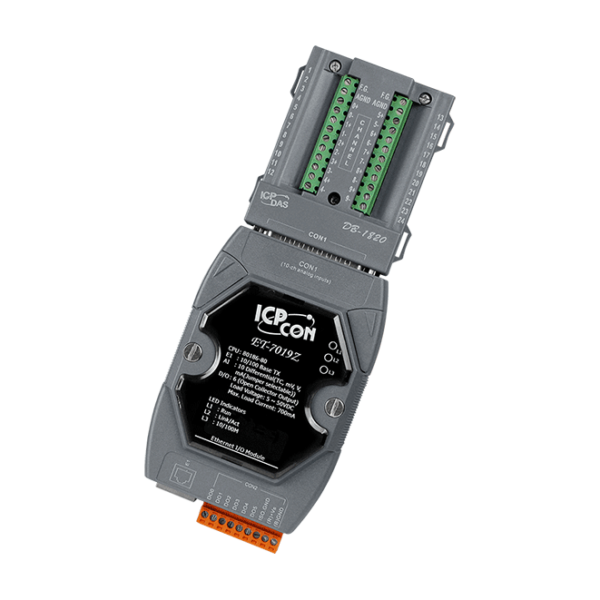

ET-7019Z/S 10-channel Thermocouple Input Module with DN-1822 Daughter Board

ET-7019Z/S 10-channel Thermocouple Input Module with DN-1822 Daughter Board

£367.00

Add to quote

Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
    • Thermocouple Input: 10 Channels
    • DO: 6 Channels

Description

The ICP DAS ET-7019Z is specifically designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported.

The ICP DAS ET-7019Z is equipped with ten input channels that can be individually configured for different kinds of analog input, open thermocouple detection and ESD/EFT/Surge protection mechanisms are also included. The six digital output channels can be set as alarm outputs with short-circuit protection and overload protection.

ET-7x19Z_PET-7x19Z
