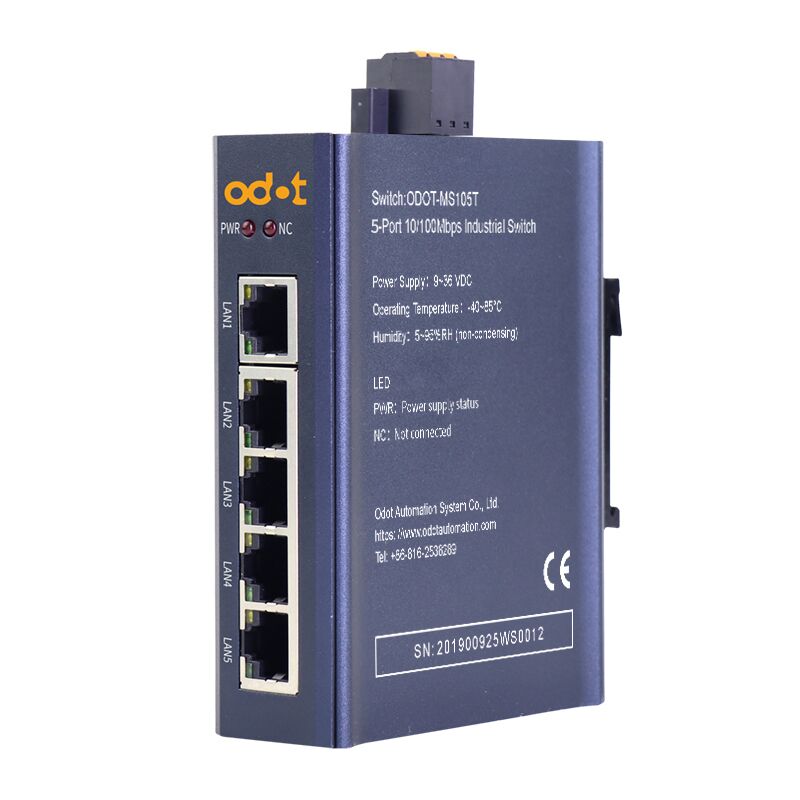

ODOT MS105T 5-Port Unmanaged Ethernet Switch

£120.00

Add to quote

Key Features

  • 10/100 Mbps self-adaption,(Auto-MDI/MDI-X)
  • Supports IEEE 802.3 for 10BaseT
  • Supports IEEE 802.3u for 100BaseT and 100BaseFX
  • Supports IEEE 802.3xfor flow control
  • Supports broadcast storm protection
  • Supports working temperature: -20~70℃
  • 5-ports unmanaged Ethernet Switch
  • DIN-Rail Mounting or Wall Mounting

Description

The ODOT MS105T 5-Port Ethernet Switch is a basic plug and play industrial-grade unmanaged Ethernet switch, all of which support 10/100Mbps auto-negotiation (MDI/MDIX), IEEE 802.3/802.3U /802.3X, Auto-MDI /MDIX and broadcast storm protection.

The ODOT MS105T switch operating temperature range is -20 °C to 70 °C, and it could be applied to a variety of industrial environments with standard 35mm DIN rail installation, and its protection level is IP20.



ODOT-MS100T Serial User Manual
