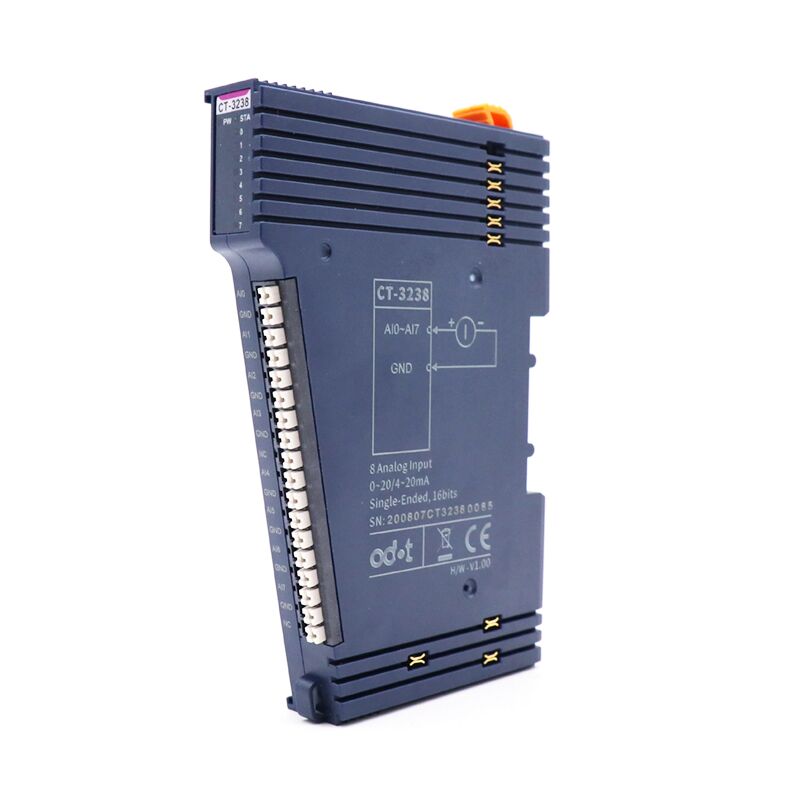

ODOT CT-3238 8-channel analog input (4-20mA)


Key Features

• Channel Number: 8 channels
• LED Indicator: 8 LED channel State indicators
• Input range: Maximum: 0 ~ 23.5 mA
• Resolution: 15 Bit
• Acquisition precision: ±0.3% full range @25℃; ±0.5% full range @-20~70℃
• Sampling rate: 20 ms per channel
• Data format: 16-bit signed integer
•Operational Temperature: -40~85℃


The ODOT CT-3238 is a 15-bit 8-channel analog input module that can be integrated with the ODOT Network Adapters measure 0-20mA or 4-20mA process signals. The module supports 2-wire (non-loop output, external power supply required) or 4-wire current sensor input.

The ODOT CT-3238 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
