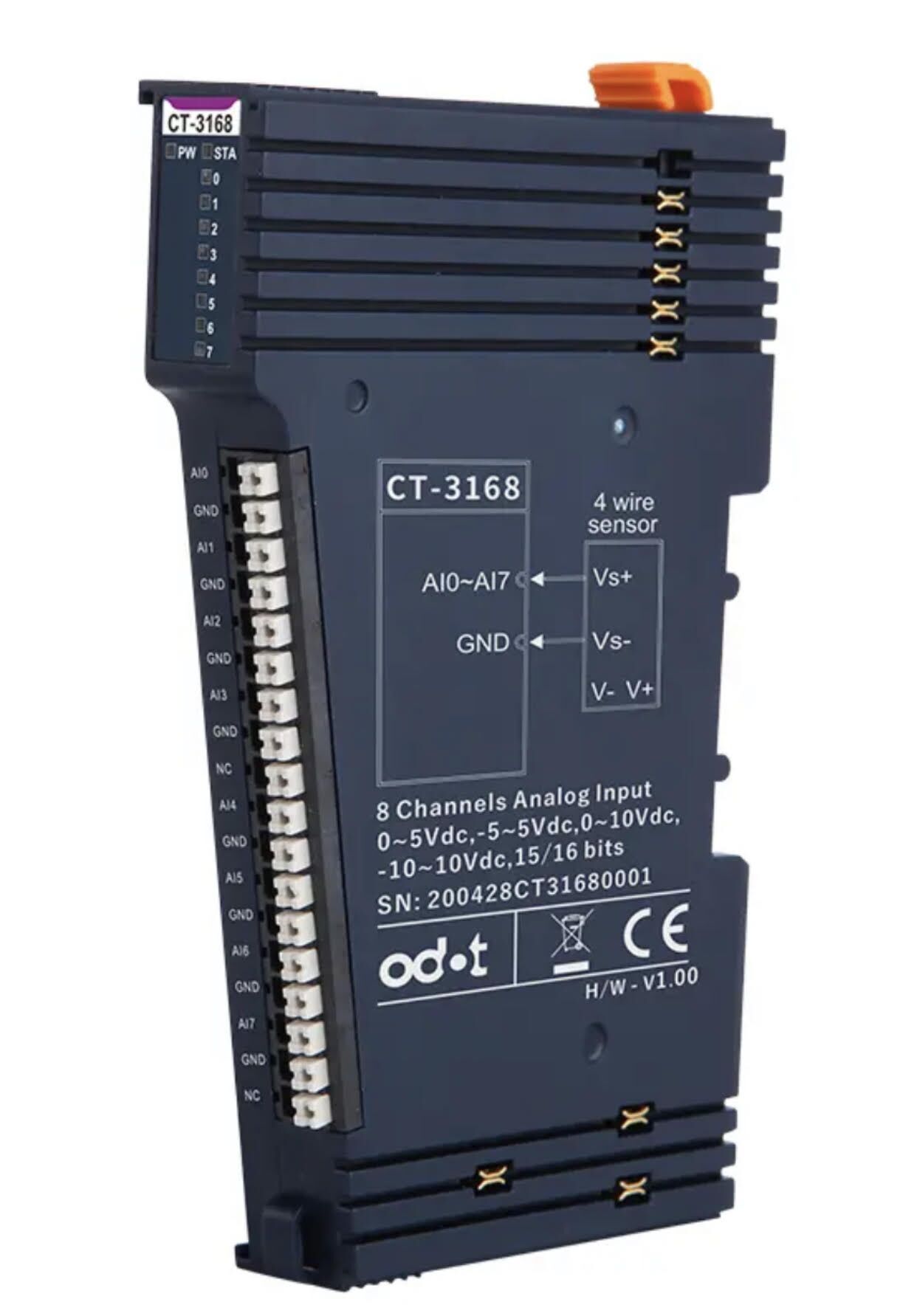

ODOT CT-3168 8 Channel Voltage Input with 15/16-bit resolution

Name: ODOT CT-3168 8 Channel Voltage Input with 15/16-bit resolution
Brand: simple
Availability: InStock

£189.00

Key Features

• Channel Number：8 Channels
• LED Indicator：8 Input LED Indicators
• Input Voltage Range：0~5VDC、0~10VDC、±5VDC、±10VDC
• Resolution: 15/16 Bit

• Accuracy: ±0.3%@25℃; ±0.5@-40~85℃
• Output Impedance: 1MΩ
• Common Terminal: Common Grounding Input

Description
Datasheets

Description

The ODOT CT-3168 is a 15/16-bit resolution 8 channel voltage input module that can be integrated with the ODOT Network Adapters to measure voltage inputs such as 0~5VDC/0~10VDC/±5VDC/±10VDC. This module is equipped with 8 analog input channel LED indicators and the input signals are single ended common grounding input.

The ODOT CT-3168 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.

Remote IO System-C Series User Manual
