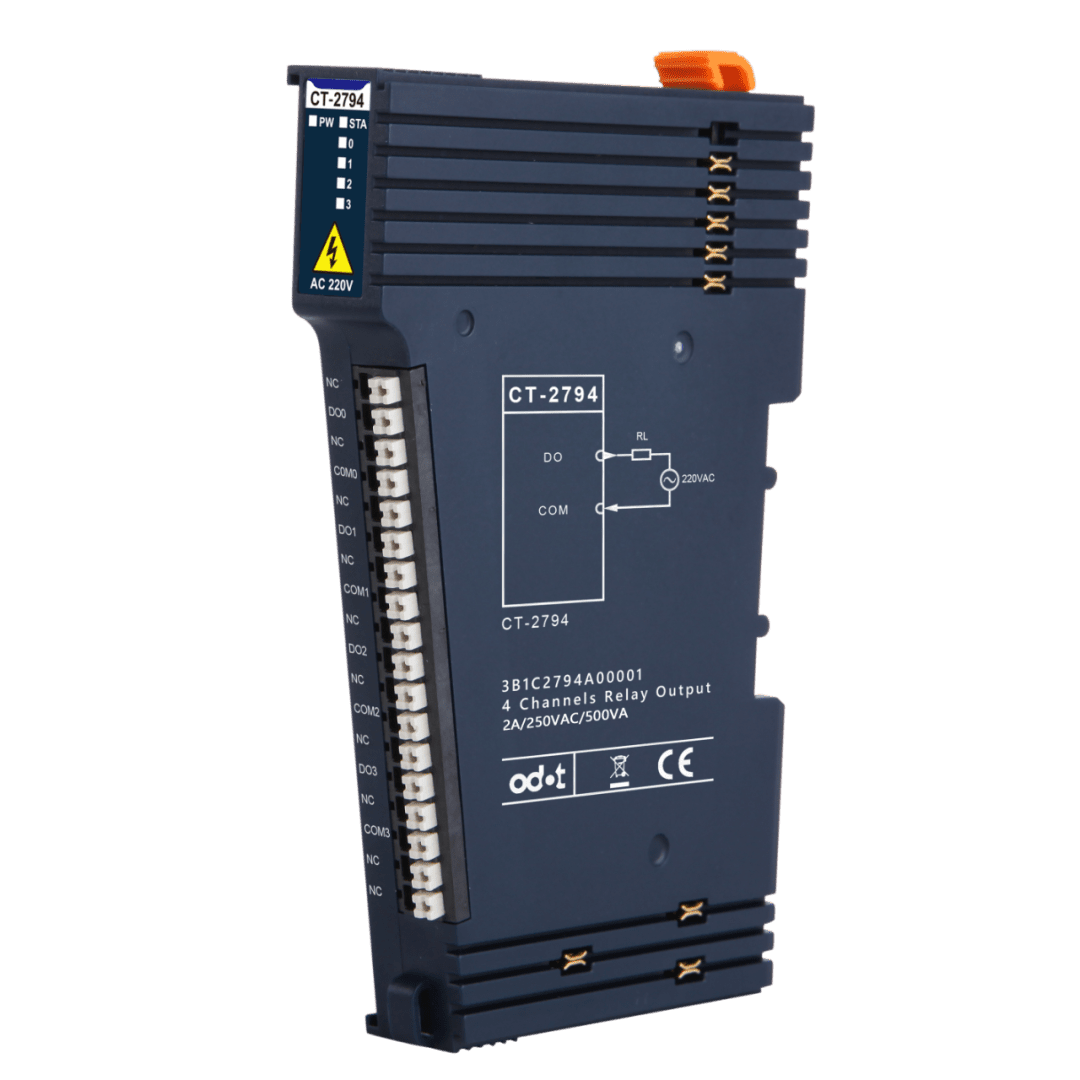

ODOT CT-2794 4-Channel Relay Output Module – 2A/250VAC/500VA


Key Features

  • 4-channel relay normally on output
  • 4 LED channel indicators
  • Low on resistance (≤100mΩ)
  • With isolation between channels
  • Resistive and inductive loads can be connected


The ODOT CT-2794 is a 4-channel Normally Open Relay Output Module with 4 LED channel indicator lights. It features low on-state resistance (≤100mΩ), isolation between channels, and can handle both resistive and inductive loads. This module utilises stronger contacts, allowing it to support a higher voltage level of 250VAC. The contact load capacity is maintained at 2A, and with a voltage of 250V, the single-channel power can reach 250W, providing enhanced driving capability.

The ODOT CT-2794 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
