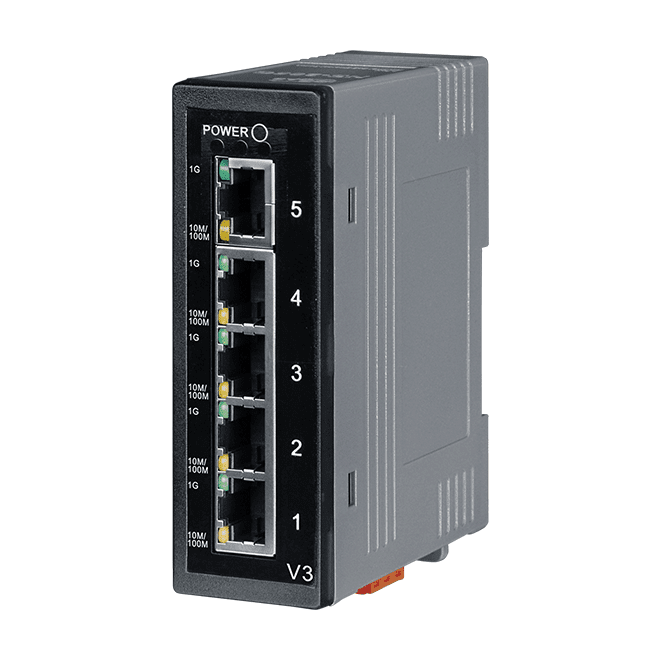

NS-205G Unmanaged 5-port Industrial 10/100/1000 Base-T Ethernet Switch


Key Features

• Automatic MDI/MDI-X crossover for plug-and-play
• Each port supports 10/100 and 1000 Mbps speed auto negotiation
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Supports operating temperatures from -40 °C ~ +75 °C
• 10 Gbps high performance memory bandwidth
• Power saving Technology
• Supports +10 ~ +30 VDC power input
• Store-and-forward architecture
• Slim packaging fits on your DIN-Rail Mounting


The ICP DAS NS-205G is a 5-port unmanaged gigabit switches that support 10/100/1000 Base-T, with a 10/100/1000M auto negotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps or 1000 Mbps) for corresponding connections. The flow control mechanism is also negotiated and there is link/data rate LEDs for each port to aid troubleshooting.

When a computer or network equipment is shutdown, switches often remains on and continues to consume considerable amount of power. With Green Ethernet technology, the ICP DAS NS-205G can automatically detect link status and reduce power usage of ports that are idle.

The ICP DAS NS-205G is an ideal solution for bandwidth-hungry applications such as high resolution digital image transmission, video/audio file streaming/downloading, and server farm connectivity.
