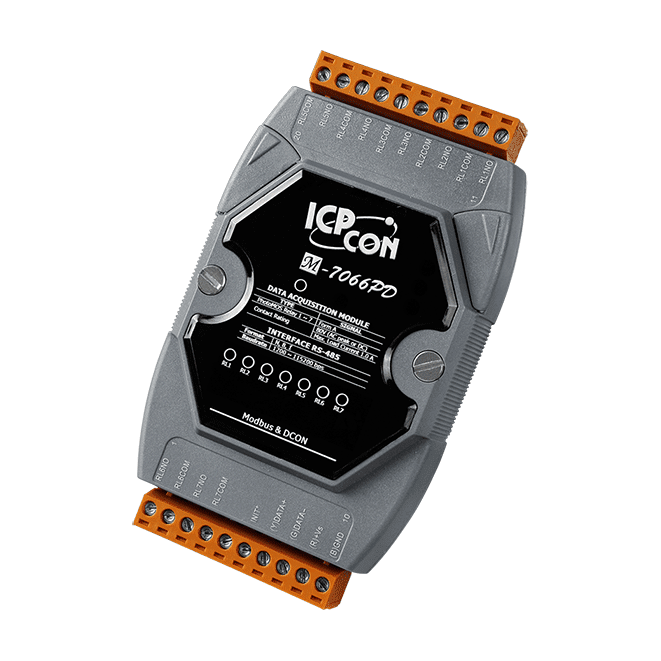

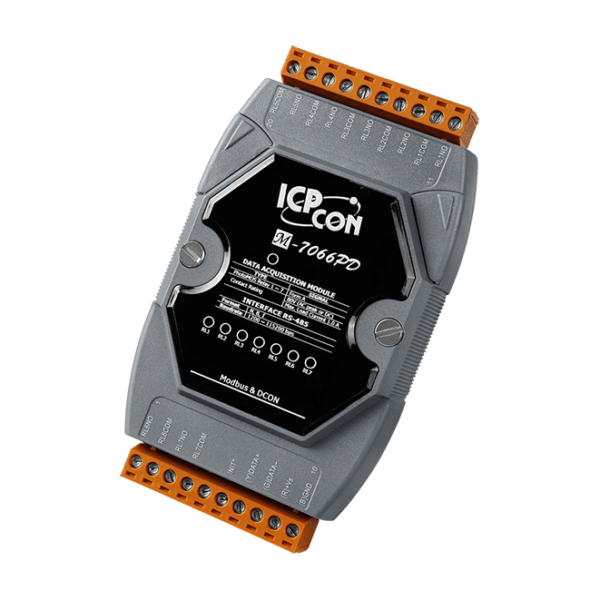

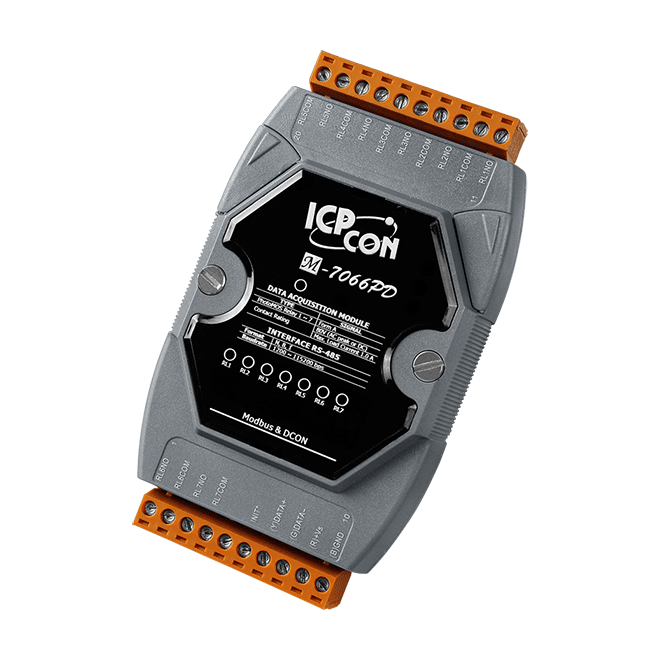

M-7066PD 7-ch PhotoMos Relay (1 A @ 80 V) Module with LED Display


Key Features

• PhotoMOS Relay:1 A @ 80 V (AC peck or DC)
• 7 PhotoMOS Relay Outputs
• 4 kV ESD Protection
• No Arcing, No Bounce, and No Switching Noise
• Photo-couple Isolation
• Built-in Dual Watchdog
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Wide Operating Temperature Range: -25 ~ +75°C


The ICP DAS M-7066P feature seven Form A PhotoMOS relay output channels. In comparison to electromechanical relays, the PhotoMOS relays provide a faster response time, greater electrical endurance, higher vibration and shock resistance. There are also no arcing, no bounce, and no switching noise for the PhotoMOS relay. There are options for configuring power-on and safe digital output values, and both the ICP DAS I-7066D and the M-7066PD each include seven LED indicators that are used to display channel status as well as providing 4 kV ESD protection.
