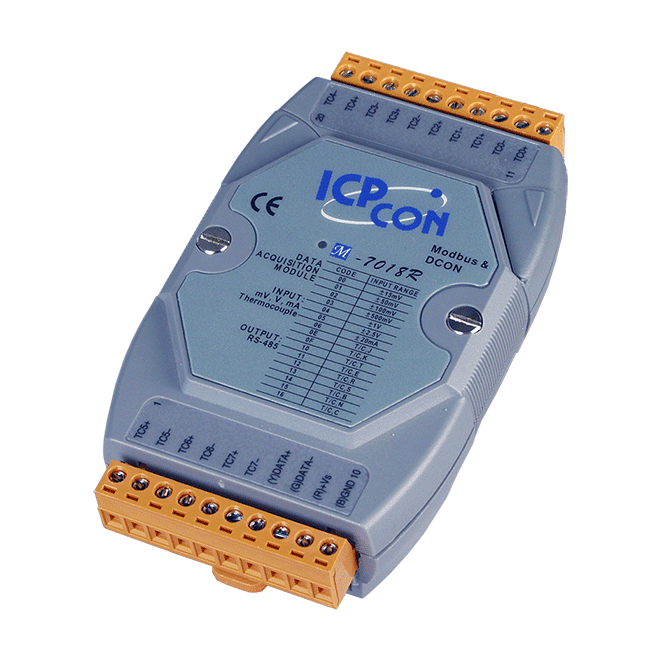

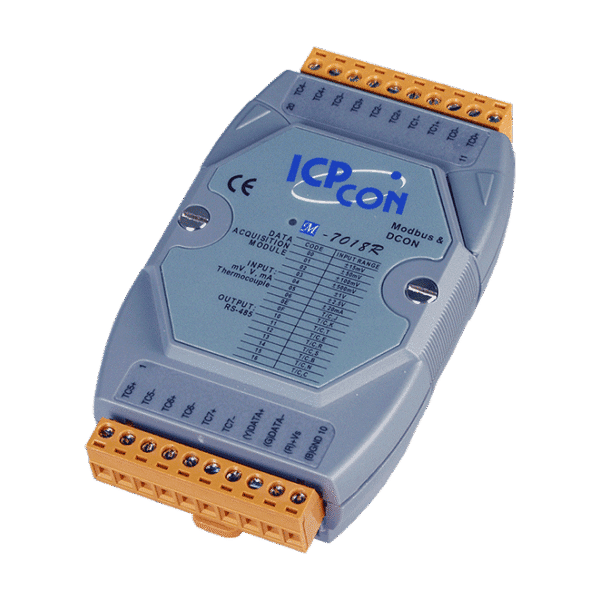

M-7018R-G 8-ch Thermocouple Input Module with High Voltage Protection


Key Features

• 8-channel Differential Analog Input
• Individual Channel Configuration
• Current, Voltage or Thermocouple Input
• 240 Vrms Over-voltage Protection
• 4 kV ESD Protection
• Dual Watchdog
• 3000 VDC Intra-module Isolation, Field to Logic


The ICP DAS M-7018 is an 8-channel Analog Input module that provides current and voltage input, as well as thermocouple input. The ICP DAS M-7018R is an upgraded version of the ICP DAS M-7018 that includes an extremely high-quality protection mechanism where the over-voltage protection can be as high as 240 Vrms.

The ICP DAS M-7018R is more suitable for critically harsh environments, and the newly-added open thermocouple detection feature makes the ICP DAS M-7018R more attractive than ever. The M-7018 and M-7018R also features 4 kV ESD protection and 3000 VDC intra-module isolation. The ICP DAS M-7018 and M-7018R supports Modbus RTU protocol and DCON protocol.
