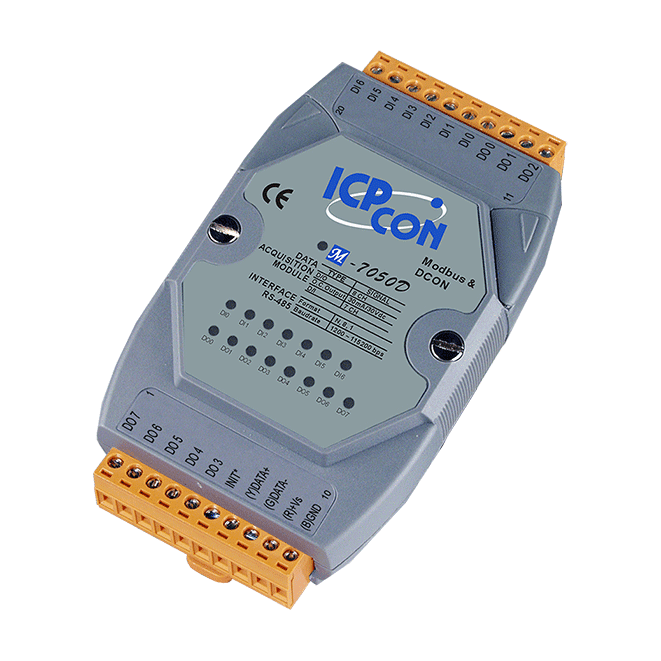

M-7050D 7-ch Non-isolated DI (Dry) & 8-ch Non-isolated DO (Sink, NPN) Module with LED Display


Key Features

• 8 Digital Outputs and 7 Digital Inputs
• Open Collector Output
• Non-isolated for all Channels
• Digital Input Channels Can Be Used As 16-bit Counters
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C


The ICP DAS M-7050 series of modules offers channels for digital input and 8 channels for digital output, each of which are non-isolated. The ICP DAS M-7050 supports sink-type output using an NPN open collector, and source-type input. All input channels are able to be used as 16-bit counters. There are also options to enable both power-on and safe values. The ICP DAS M-7050D has 15 LED indicators that can be used to monitor channel status. The M-7050 has the same hardware specifications as the ICP DAS I-7050, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
