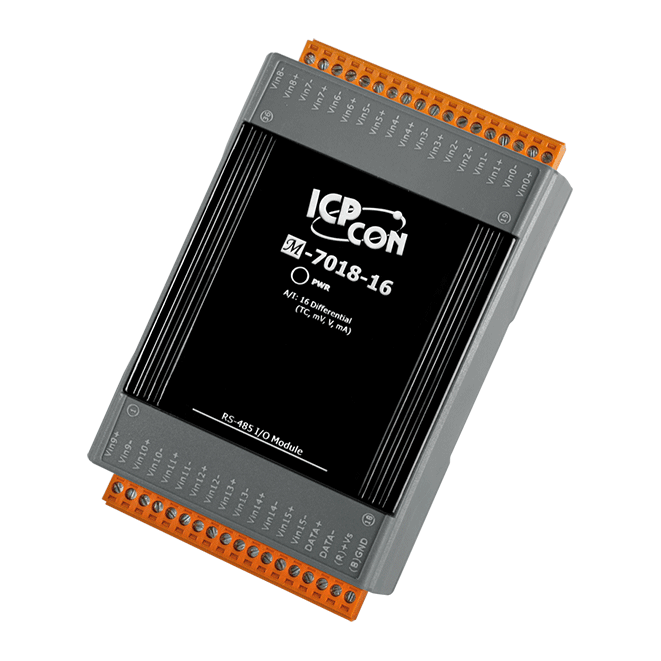

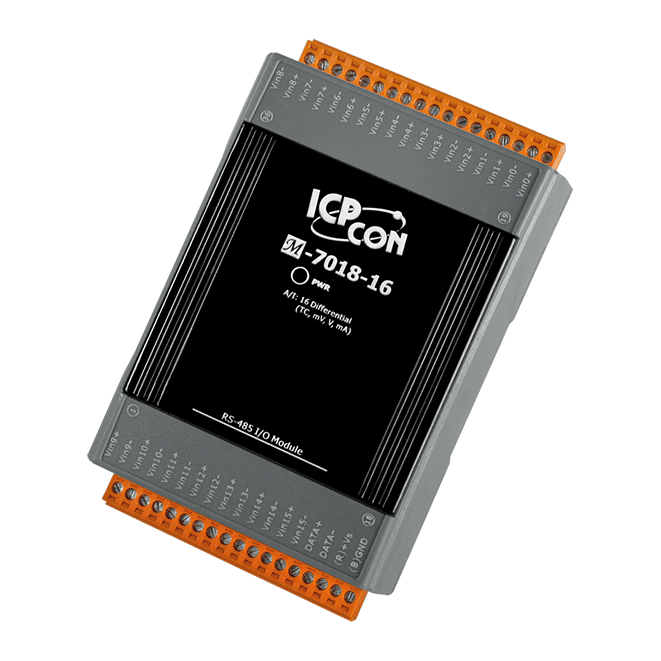

M-7018-16-G 16-ch Thermocouple Input Module


Key Features

• 16-channel Differential Analog Input
• ±30 VDC Overvoltage Protection
• Current, Voltage or Thermocouple Input
• Adjustable CJC offset
• 4 kV ESD Protection
• Dual Watchdog
• 3000 VDC Intra-module Isolation


The ICP DAS M-7018-16 is an analog input module with 16 differential analog input channels. The voltage input range can be from ±15 mV to ±2.5 V, the current input range can be either +4 to +20 mA, 0 to +20 mA, or ±20 mA, and types J, K, T, E, R, S, B, N, C, L, M, LDIN43710 thermocouple can be used for the thermocouple input.

The M-7018 is equipped with over-voltage protection of up to 30 VDC. This ICP DAS remote I/O module also features per-channel open wire detection for the thermocouple input types, and 4 kV ESD protection as well as 3000 VDC intra-module isolation.
