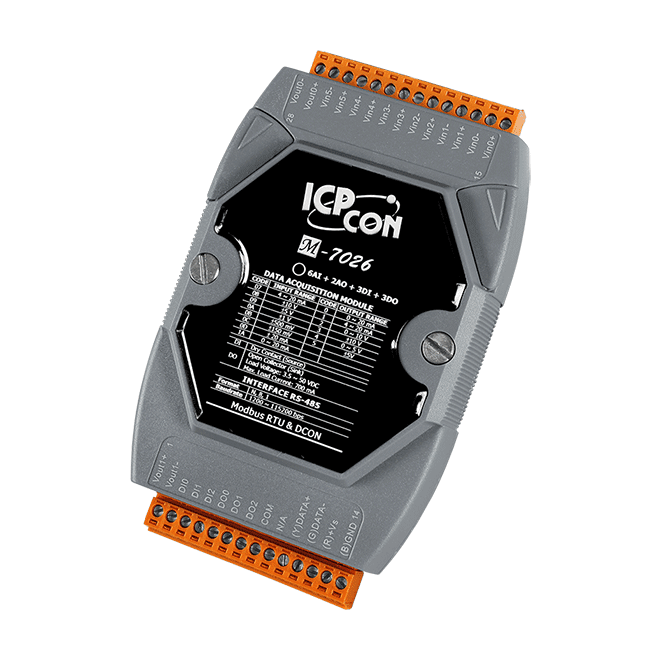

M-7026-G 6-ch AI, 2-ch AO, 3-ch DI and 3-ch DO Module

£259.00

Add to quote

Key Features

  • Multifunction (6 AI, 2 AO, 3 DI, and 3 DO)
  • Jumper Selectable Voltage or Current Input/Output
  • High Over-voltage Input Protection
  • High Common Voltage Protection
  • Adjustable Sampling Rate (Fast/Normal Mode)
  • Individual Channel Configuration
  • Open Wire Detection for Current Output
  • Overload and Short Circuit Protection for Digital Output
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Description

The ICP DAS M-7026 is a multi-function module that includes 6 analog input channels, 2 analog output channels, 3 digital input channels, and 3 digital output channels. It provides a programmable input range on all analog input channels (±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ +20 mA, or 4 ~ 20 mA), analog outputs are 12-bit at 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, 0 ~ +20 mA, or +4 ~ +20 mA and all digital outputs can be set as an alarm output.

Each analog input can be configured for an individual range and provides high overvoltage protection of 240 Vrms. Voltage and current inputs/outputs are jumper selectable.

Applications

  • Building Automation
  • Factory Automation
  • Semiconductor Fabrication
  • Remote Maintenance
  • Remote Diagnosis
  • Food and Beverage Systems
