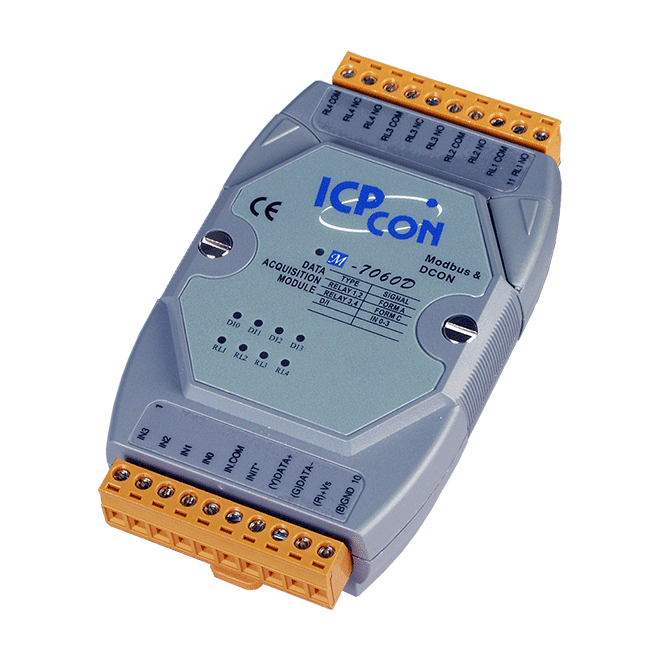

M-7060D 4-ch Isolated DI (Wet, 4~30 VDC) & 4-ch Signal Relay Module with LED Display
• ±2 kV EFT protection for Power Line
• Sink- and Source-type for Digital Input
• Digital Input Channels can be used as 16-bit Counters
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C
The ICP DAS M-7060 series provides 4 digital input channels, 2 Form A and 2 Form C signal relay output channels, while the ICP DAS M-7060P provides 4 digital input channels, 2 Form A and 2 Form C power relay output channels. All digital input channels can be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. The “D” versions of the 7060 series provide eight LED indicators that can be used to monitor the status of the digital input and relay output.
The M-7060 series support both the Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments. The ICP DAS I-7060 series is the ideal solution for small signal switching applications, while the M-7060P is the perfect solution for high power applications.
