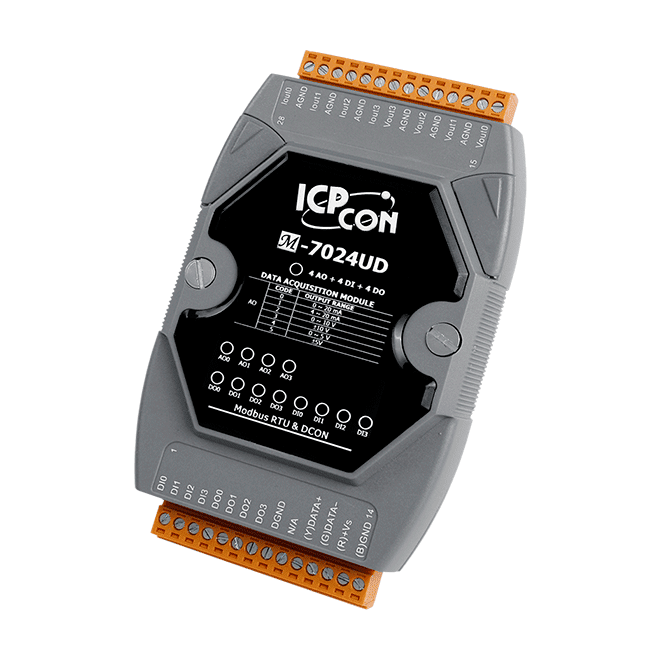

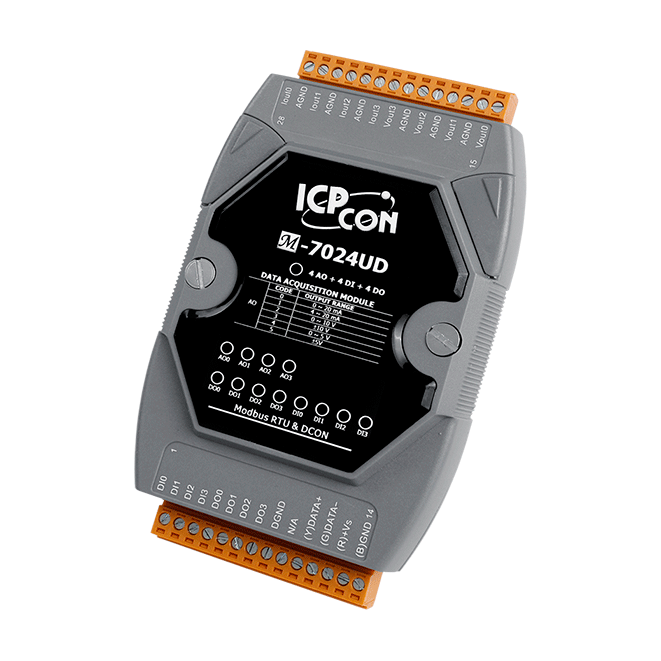

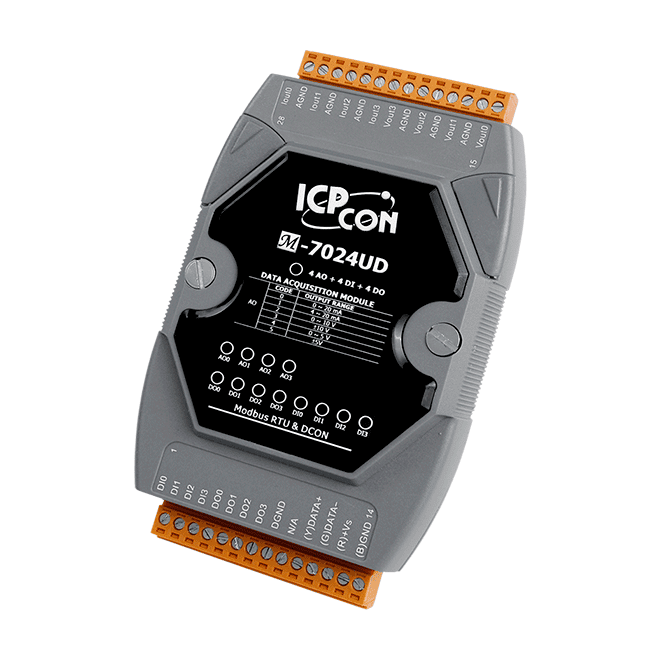

M-7024UD 4-ch 16-bit AO Module with 4 DI, 4 DO and LED Display


Key Features

  • Multi-function (4 AO, 4 DI, and 4 DO)
  • Source-type Current Output
  • 16-bit Analog Output
  • Individual Channel Configuration
  • Open Wire Detection for Current Output
  • Configurable Power-on Value and Safe Value Settings


The ICP DAS M-7024U/M-7024UD is a multi-function module that includes 4 analog output channels, 4 digital input channels, and 4 digital output channels. It provides a programmable output range on all analog output channels (0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, +4 ~ +20 mA, or 0 ~ +20 mA). Each analog output channel can be configured for an individual range.

The M-7024UD has 12 LED indicators for channel status monitoring. The M-7024U(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. The module also features per-channel open wire detection for +4 ~ +20 mA outputs, together with 8 kV ESD protection as well as 2500 VDC intra-module isolation.


  • Building Automation
  • Factory Automation
  • Semiconductor Fabrication
  • Remote Maintenance
  • Remote Diagnosis
  • Food and Beverage Systems
