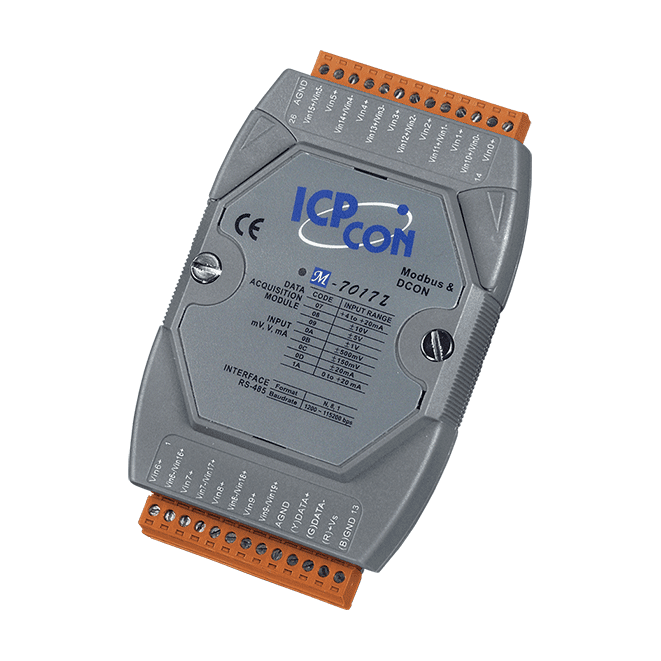

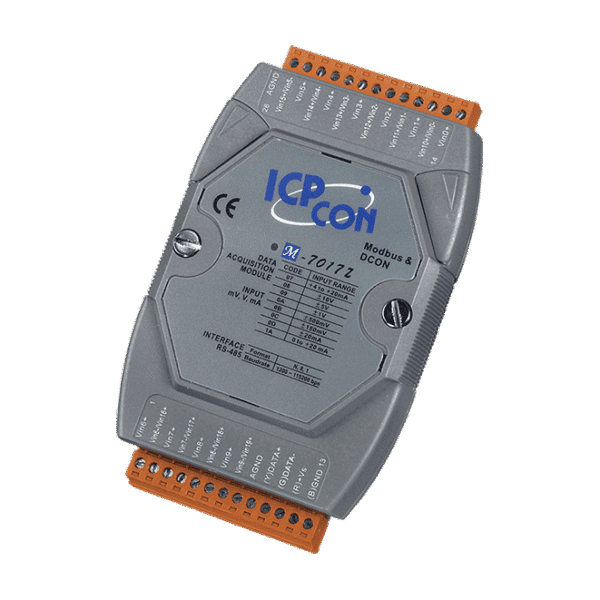

M-7017Z-G 10/20-ch AI Module with High Voltage Protection


Key Features

• 10-channel Differential or 20-channel Single-ended inputs
• Jumper Selectable Voltage or Current Input
• Supports Fast and Normal Mode Sampling
• 240 Vrms Over-voltage Protection
• 4 kV ESD Protection
• Dual Watchdog
• 3000 VDC Intra-module Isolation, Field to Logic


The ICP DAS M-7017Z is an analog input module that includes 10 differential or 20 single-ended analog input channels. The module provides a programmable input range on all Analog Input channels. Each Analog Input channel can be configured for an individual input range, providing a high overvoltage protection of 240 Vrms and 50mA overcurrent protection at 110 VDC/VAC. Voltage and current input are jumper selectable.

The sampling rate of ICP DAS M-7017Z is adjustable and can be set to either fast or normal mode. The module also features per-channel open wire detection for 4 ~ 20 mA input and provides 4 kV ESD protection as well as 3000 VDC intra-module isolation. The M-7017Z supports both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as ICP DAS I-7017Z.
