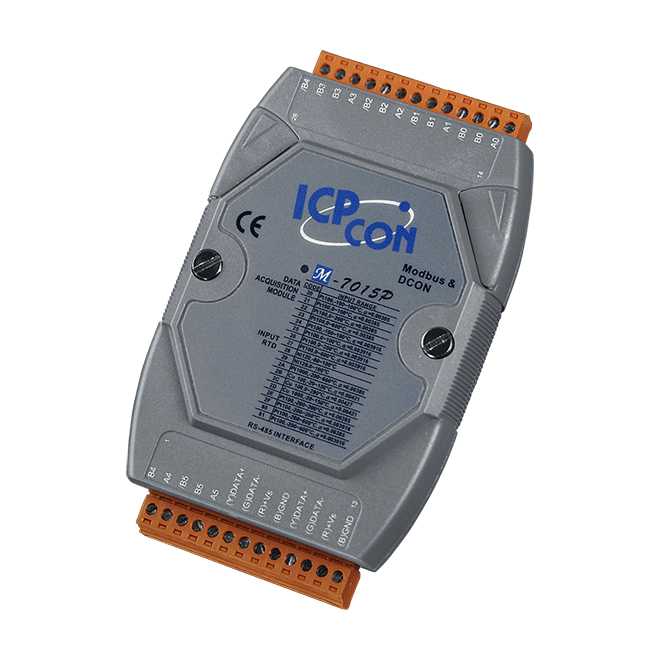

M-7015P 6-ch RTD Input Module with 3-wire Lead Resistance Elimination


Key Features

• 6-channel RTD Input
• 3-wire RTD Input with Lead Resistance Elimination
• High Resolution: 16-bit
• Individual Channel Configuration
• Open Wire Detection
• 4 kV ESD Protection
• 4 kV EFT Protection
• 3000 VDC Intra-module Isolation
• Dual Watchdog
• Wide Operating Temperature Range: -25 to +75°C


The ICP DAS M-7015 is a series of 6-channel RTD input modules that are used for measuring temperatures using RTD sensors and each channel can be connected to a different type of sensor. The ICP DAS I-7015P/M-7015P is specifically designed for long-distance RTD measurement, and features automatic compensation for three-wire RTD, meaning that accurate measurements can be obtained regardless of the length of the wires.

The ICP DAS I-7015 series is fully RoHS-compliant and features 4 kV ESD protection and 3000 VDC intra-module isolation. The ICP DAS M-7015/M-7015P supports both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the ICP DAS I-7015/I-7015P.
