M-7002 4-ch AI, 5-ch DI and 4-ch Relay Module


Key Features

• Voltage and Current Inputs
• +/-240 Vrms Over-voltage Protection
• High Resolution: 16 bit
• 2500 VDC Intra-Module Isolation
• Sink and Source Type Digital Inputs
• Photo-couple Isolation
• Support Relay Outputs
• DIN-Rail Mountable
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C

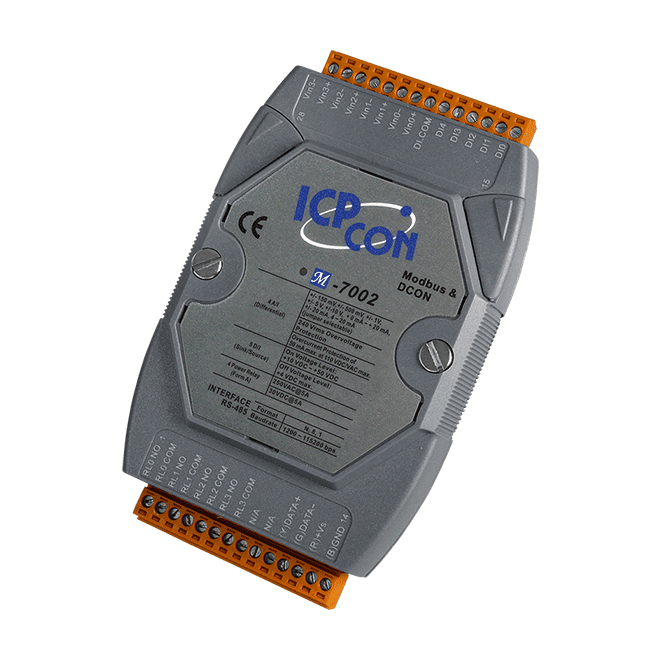

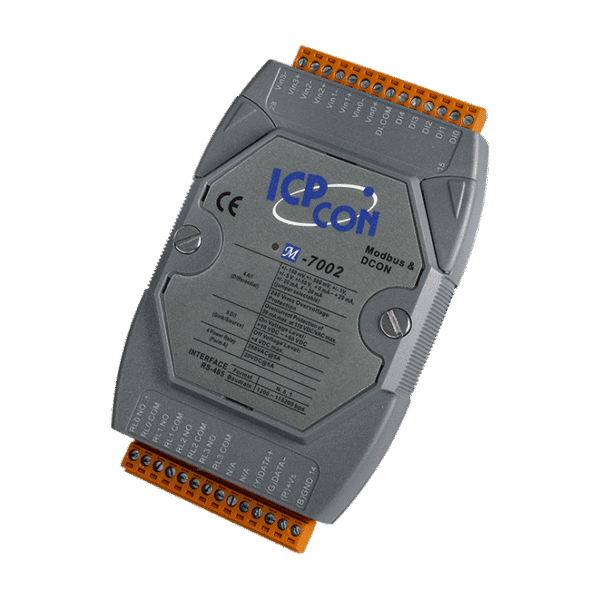

The ICP DAS M-7002 is a 16-bit, 4-channel differential analog inputs 5-channel digital inputs and 4-channels for relay output. All of its channels are Form A type relay module that provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA) and digital output can be set alarm output with short circuit protection and overload protection.

Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Jumper selectable for voltage or current input. The sampling rate of the ICP DAS M-7002 is changeable; there are fast mode and normal mode for your consideration. The ICP DAS M-7002 also has qualification for 4 kV ESD protection and 2500 VDC intra-module isolation.
